Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 21

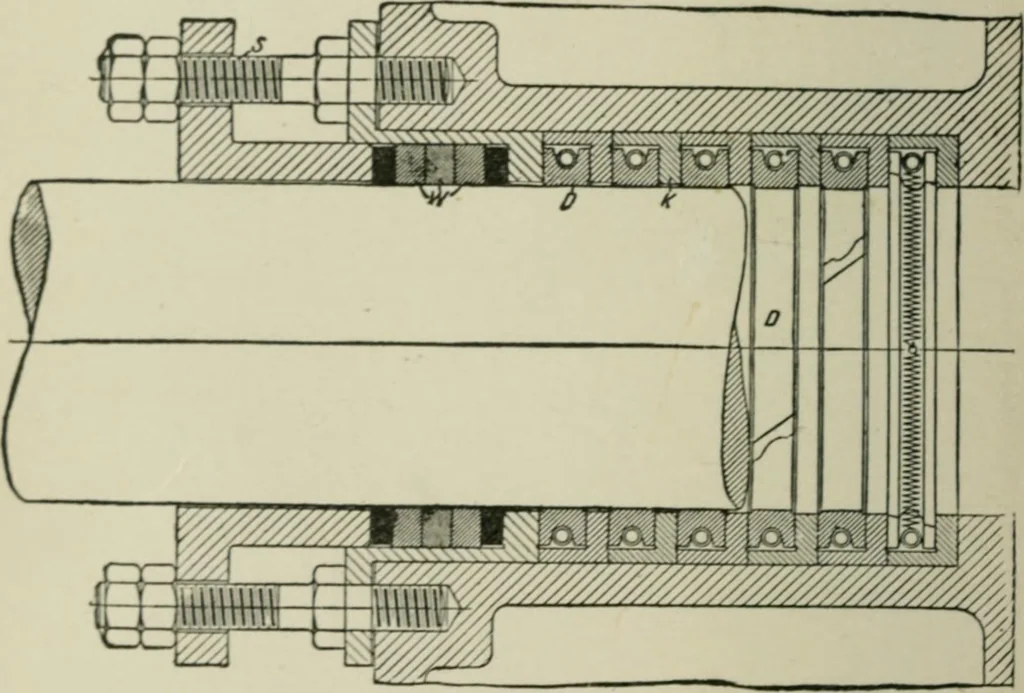

ronze rings 16 Xliii hiKjinciiing d, (\, each made in tlirce parts, wliich arc held nsxainst lliosliaft with slifjlit pressure hv the sj)iral sprinfrp c. A pres-sure in an axial direction is caused hv springs f. Thochamhers of all the stuffing hoxes of the turhine are con-nected together. Thus a… … Fig. 243 steam to enter, thus preventing air from being drawn in. Steam is led in Figs. 210 and 241 through the ringpassages, and excludes thereby the air, so that the vacuumdoes not suffer. The construction of a turbine stuffing box as steam tightas that of the steam engine is still an unsolved…
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
