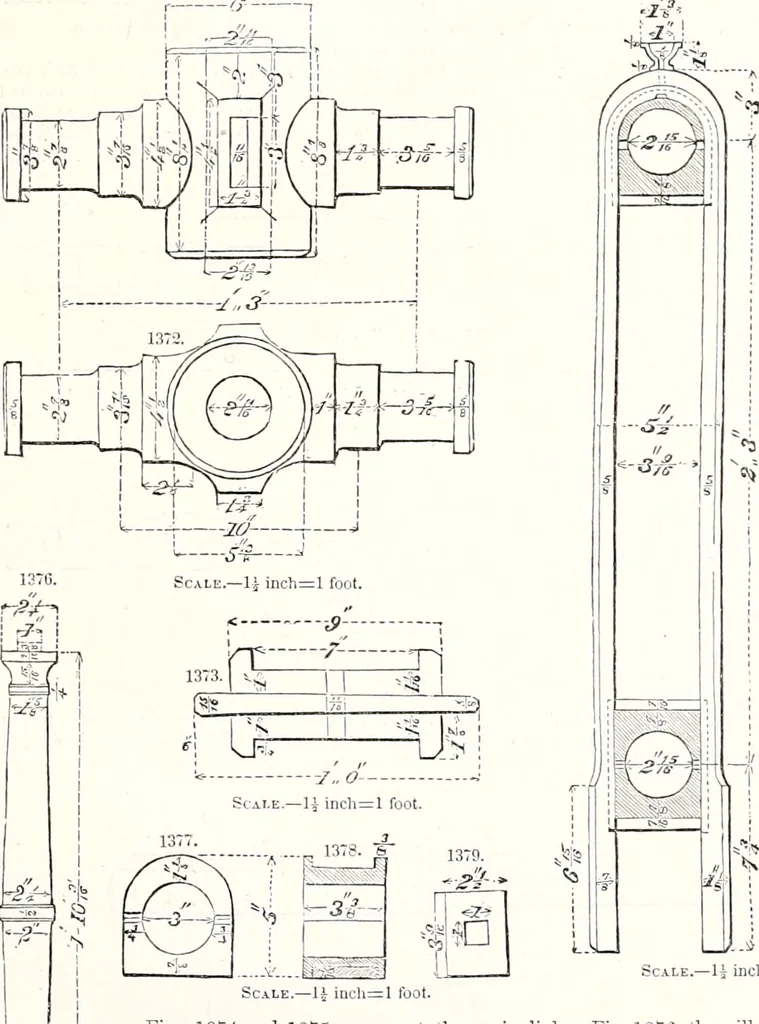

ar of the brasses is then less rapid. It is a com-mon fault to make bearings too small, from their proportionment being viewed with reference onlv tostrength, whereas it should also be viewed with reference to wear. Figs. 1371 and 1372 are views of the piston-rod clutch or cross-head. The… … 3L{ji 1 > B i —lj inch=l loot. Figs. 1374 and 1375 represent the main links; Fig. 1376, the pillar of the main link, which is interposed between the upper and under brasses; and Figs. 1377, 1378, and 1379 the upper brass and pillar-plate of the link. Fig. 1380 represents the gibs and cutter of…
