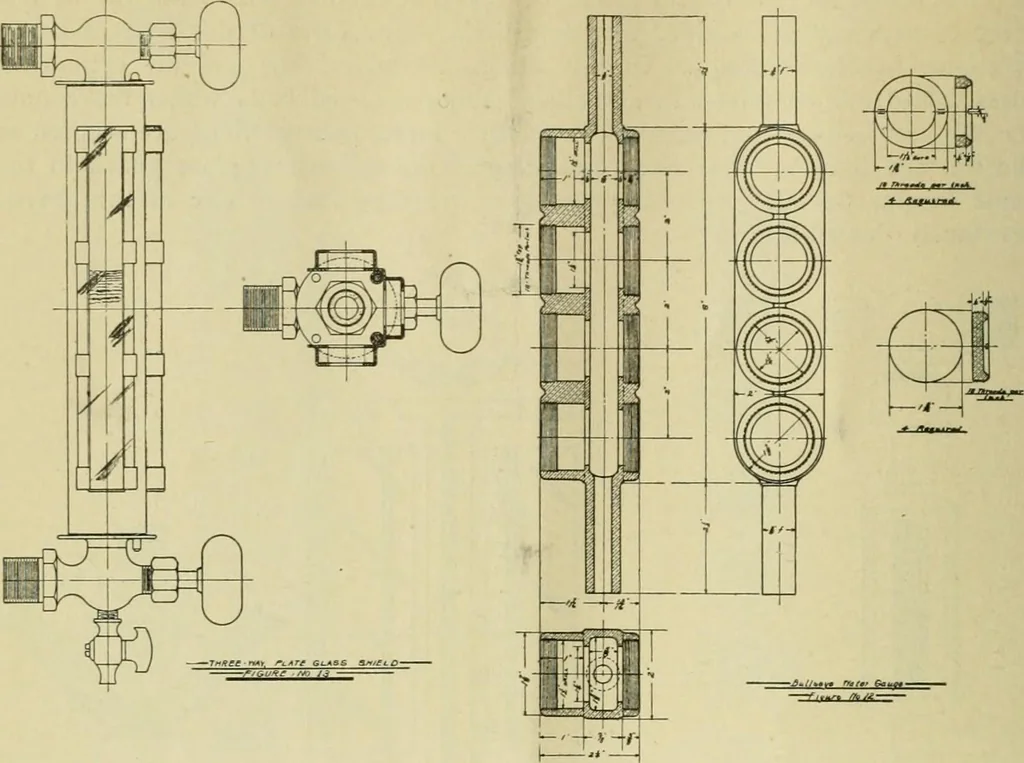

server must be nearlyin front of the gauge to see the water clearly. The Klinger or Reflexidea is certainly a good one and its merits to a great extent offset its defects. The use of glass bnlls-eyes on lubricators in place of short glass tubesnaturally suggested the use of bulls-eyes on water… … Fig. 13.— Plate Glass Shield. Fig. 12.— Bull.s-Eye Water Gauge. arrangement shown in Figure No. 10. Here a series of bulls-eyes having prismson their inner faces are set in a casing, similar to the Klinger or Reflex gauge. Objection has been made to this type of gauge on the ground that theexact…
