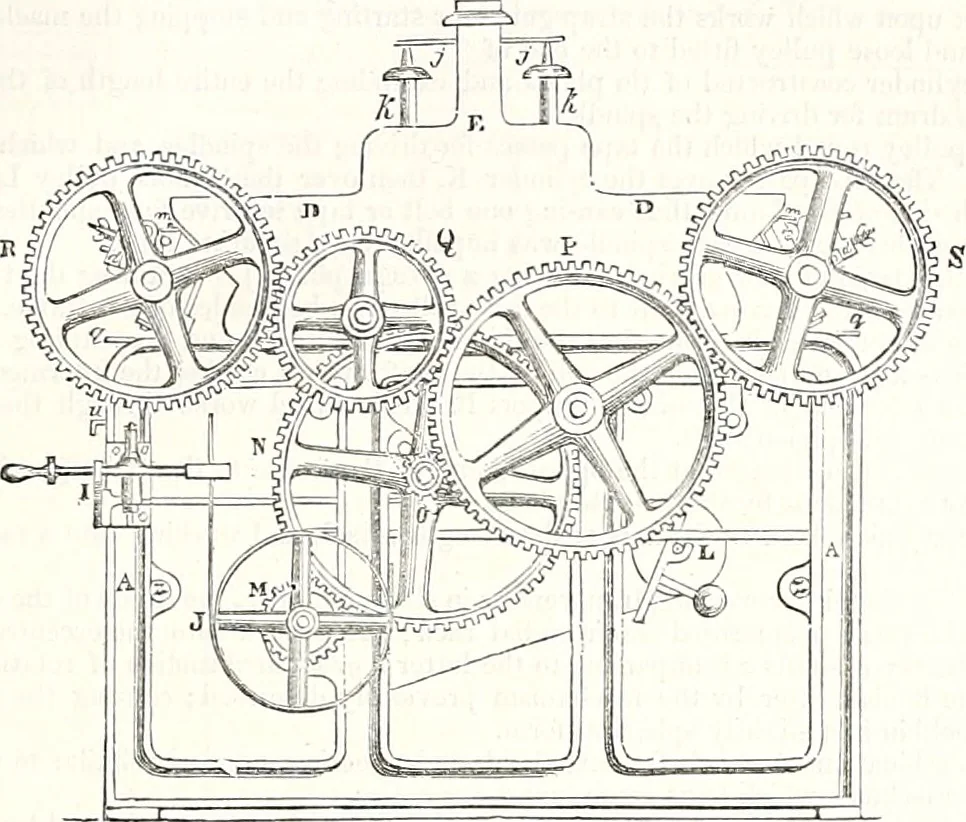

AX, MACHINERY FOR PREPARING AND SPINNING. 071 nearly the -whole length of the boss, and thereby preventing the roving from wearing the surface of therollers unequally. q q, the thread-plates or guides, having small notches opposite to each bobbin through which thethreads pass on their way from the… … G G, are sheet-iron linings extending from the beam C to H H, spouts formed under and within the rows of bobbins. These linings and spouts serve to coUact»nd withdraw the water which is thrown off by the centrifugal force of the bobbins.
