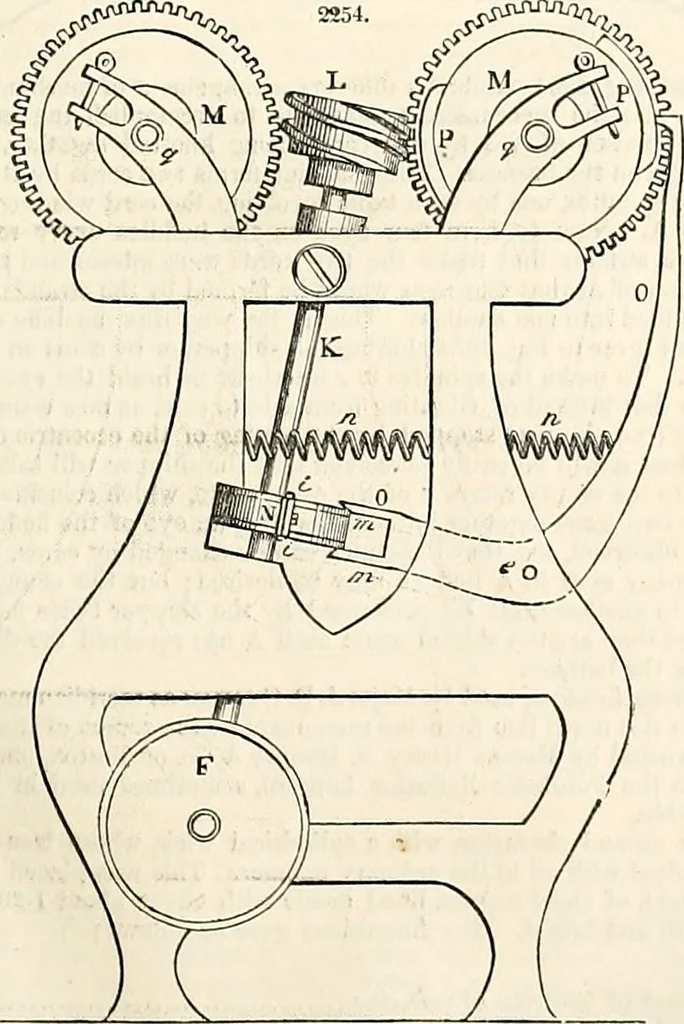

to vibrate ^, a shipper, which shifts the spindles from one table to another; the opposite ends of ^operate on two pau-s of tables. A connecting-rod witli N vibrates the sliippers. N is connected with K,and turns with it by clutch-pins, and when these are not engaged the shafts turn without N. i i,… … are two clutch-pins on K, either of which may be brought in contact with i, as the eccentric-wheel ismade to slide up and down on the shaft. 0, Figs. 2262 and 2254, is a forked lever with its fulcrum at «Its fork ends m ?n embr.ice N, the eccentric, and raise and lower it at proper times. ?! n is a…
