Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 411

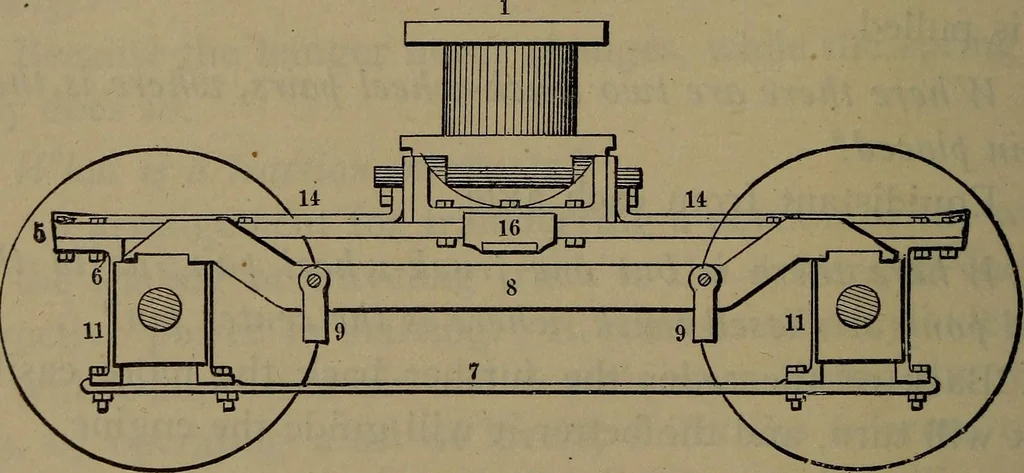

(14 Fig. 269. Kngine Truck. Q. How are engine trucks designated? A. (1) As four-wheel or bogie trucks, (2) as two-wheel or pony trucks when ahead of the drivers, and (3) … Fig. 270. Four-Wheel Truck. 1. Center-pin. 2. Swing Bolster. 3. Swing-bolster Cross-tie. 4. Swing-bolsterIyink. 5. Truck Frame. 6. Truck Pedestal. 7. Truck-pedestal Cap. 8. Equalizing-beam. 9. SpringIyink. 10. Axle. 11. Wheel. 12. Radius-bar. 13. Radius-bar Brace.14. longitudinal Brace. 15.…
