Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 453

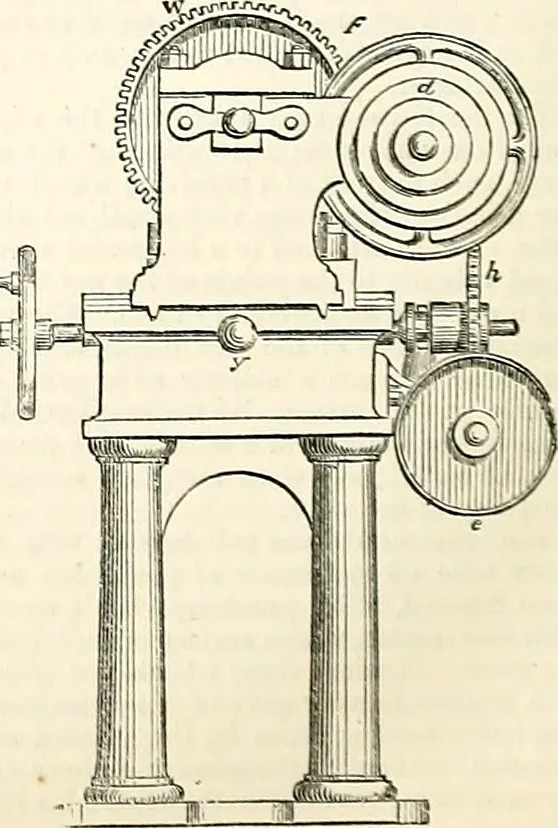

htened by a nut on tlie under side, seen in ]?ig. 2974,by a counter-nut; different sizes of these mandrel-pinsor screws are of course requii-ed for different sizes ofnuts. b, a hand-wheel, upon the end of a slide-lever for carry-ing the nut across the end of the cutter. c, a shaft carrying a set of… … OILS. 447 TO, a handle to disengage the self-acting feed when desired. The upper part of the slide on whlohthe nuts are fixed turns rounil, and is held in the position required by tlie handle m, the end of which ispressed, by a spring, into notches on the rim of the table. See Fig. 2976. ;/, a…
