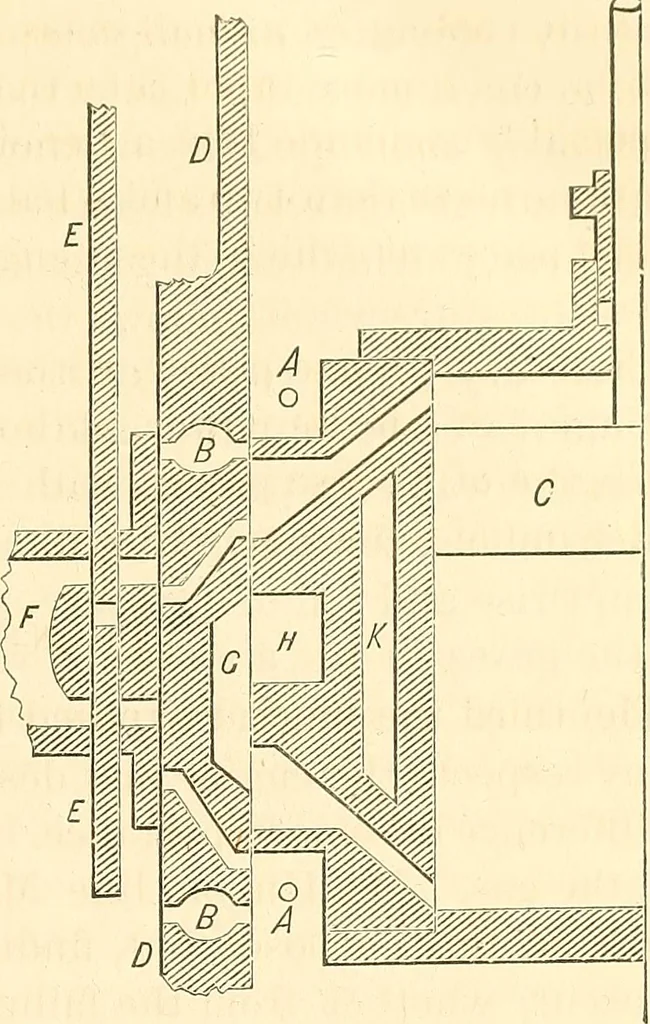

HUGONS GAS-ENGINE. 67 … As the piston advances, the mixed gases continue to flow in from Funtil a sufficient supply has entered the cylinder, when the slide E takesthe position shown in Fig. 4, andcommunication with the reservoiris closed. At the same time theslide D advances to the successivepositions shown in Figs. 4…
