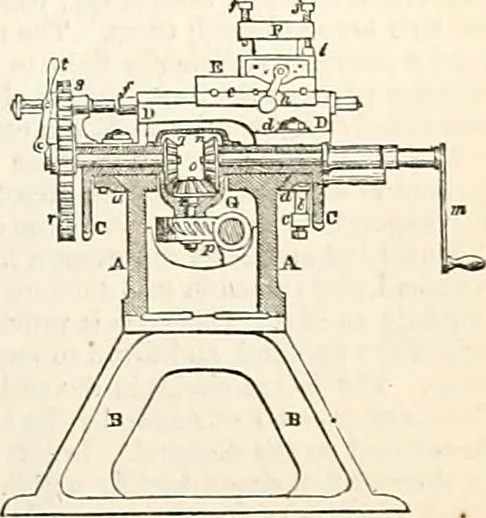

—as, for instance, to bring the saddle, and consequently the caniage, to any particularposition—the nut k is disengaged, and the handle ?/i, the socket of which is fitted on a horizontal spindlecarrying the small meter-wheel n, which geers with a larger one o, keyed on one end of a vertical… … 744 TOOLS. dent that by turning the handle m, the tangent-wheel j>, driven as already described, will produce precisely the effect of a rack; that is to say, the saddle and carriage will receive a traversing motion itthe direction of the length of the lathe-bed. In actual work the saddle, and…
