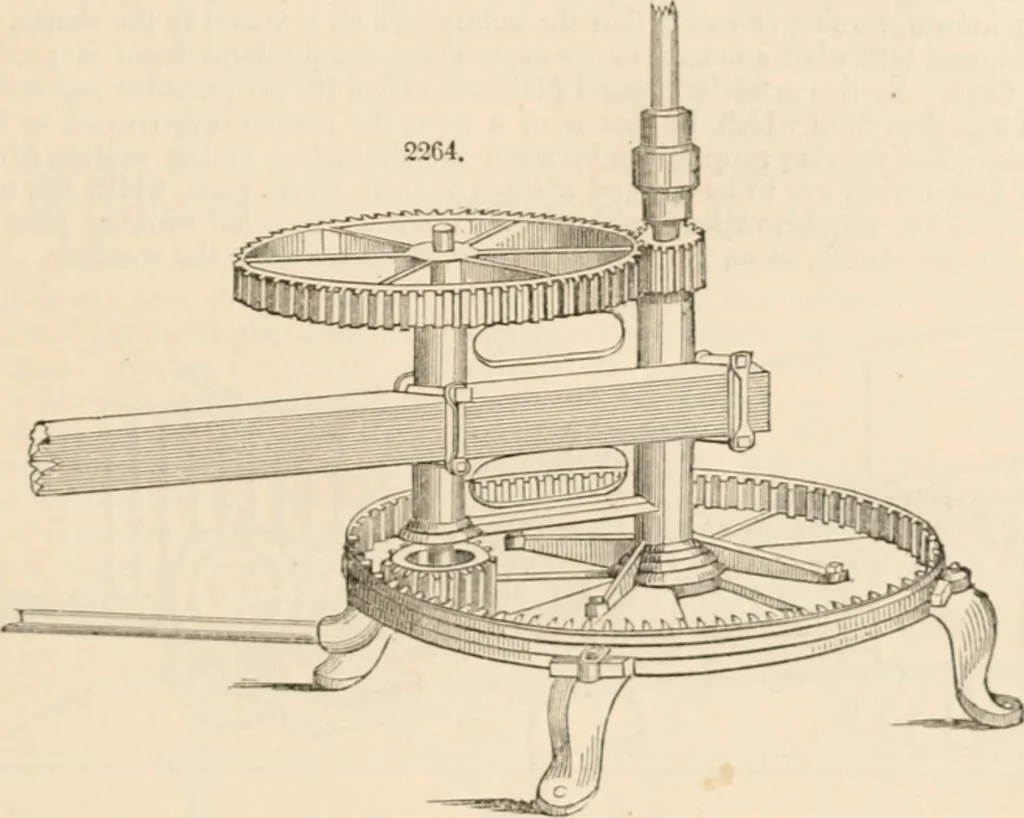

he driving-pulley can beatta<h<d to the central shaft above the central pinion, Fig. 2264. The arbor of the planet-whioiled through a hole in the wheel which delivers it at the junction of the Bleeve and arbor; and in likemaimer the central shaft and the sleeve that turns on tin- central… … Arranged to earn the belt from the horizontal pulley under the foot-path on which the horse walks. The whole apparatus is made light and portable, rests on the case-frame, and turns on theestandard, which makes part of the base-frame, without supports or bearings at the top. The whole can1a. taken…
