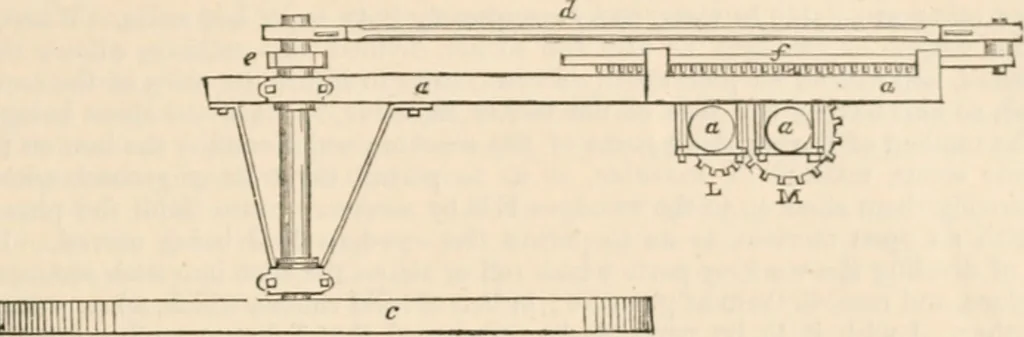

e of iron while in the act of Lending around the piece 1\as represented by the dotted lines at Kg. 22*73. Fig. .-73, section of the irons K and L. These two pieces, K and [ are fastened on the shaft ggwiththeir reversed sides up from what they appear in the drawing. The dotted lines represent a… … The nature of the operation is as follows:— Firstly: Fig. 2267 represents a section of the machine, haying the upper roller r removed, so as toshow more distinctly the interior arrangement of the machine. Supposing a pulley of about four feetdiameter were bolted to the arms of the fly-wheel e,…
