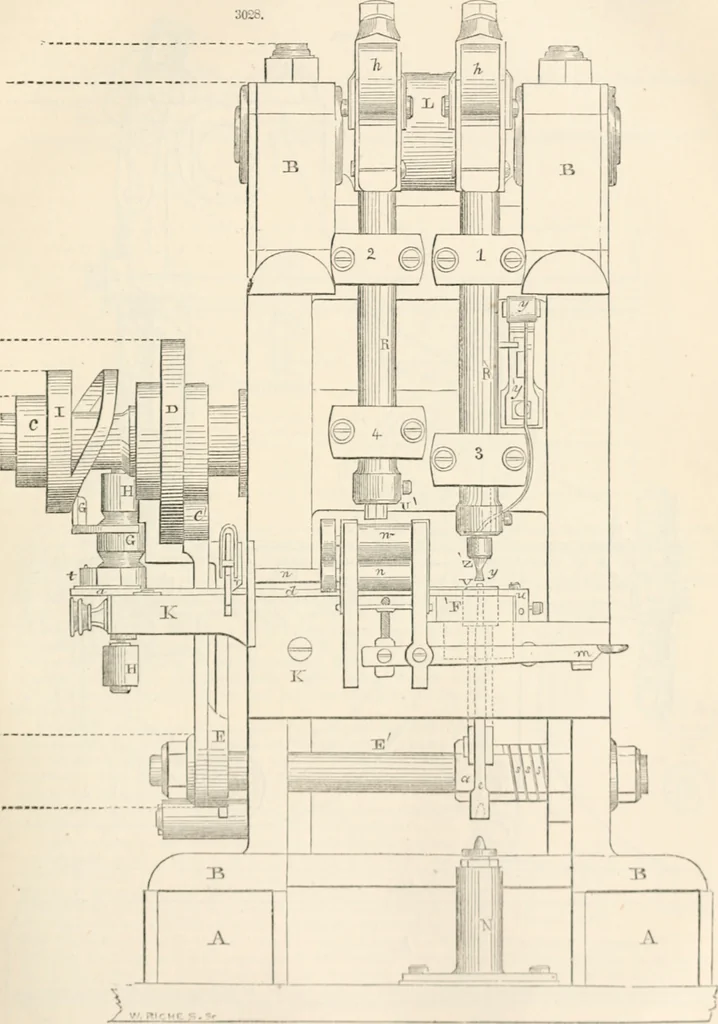

and flanch D D, on which isthe feed-cam c, which operates the feed-lever J] and through the double hands P P, works the ratchets PERCUSSK VCAP MACHINE. r r of the feed-rollers. On the opposite face of this collar is the cam c of the elevator lever E E, which,through the rocking-arbor Eand arm .… … nil,. I ■ Iitno. 470 PERCUSSION-CAP MACHINE. u is the gage, a cap of steel over the head of the forming-die, with semicircular notch in its edgeagainst which the star is driven by the transfer and held concentric with the forming-die until seized bythe forming-punch. yy, the driver, a slender lever…
