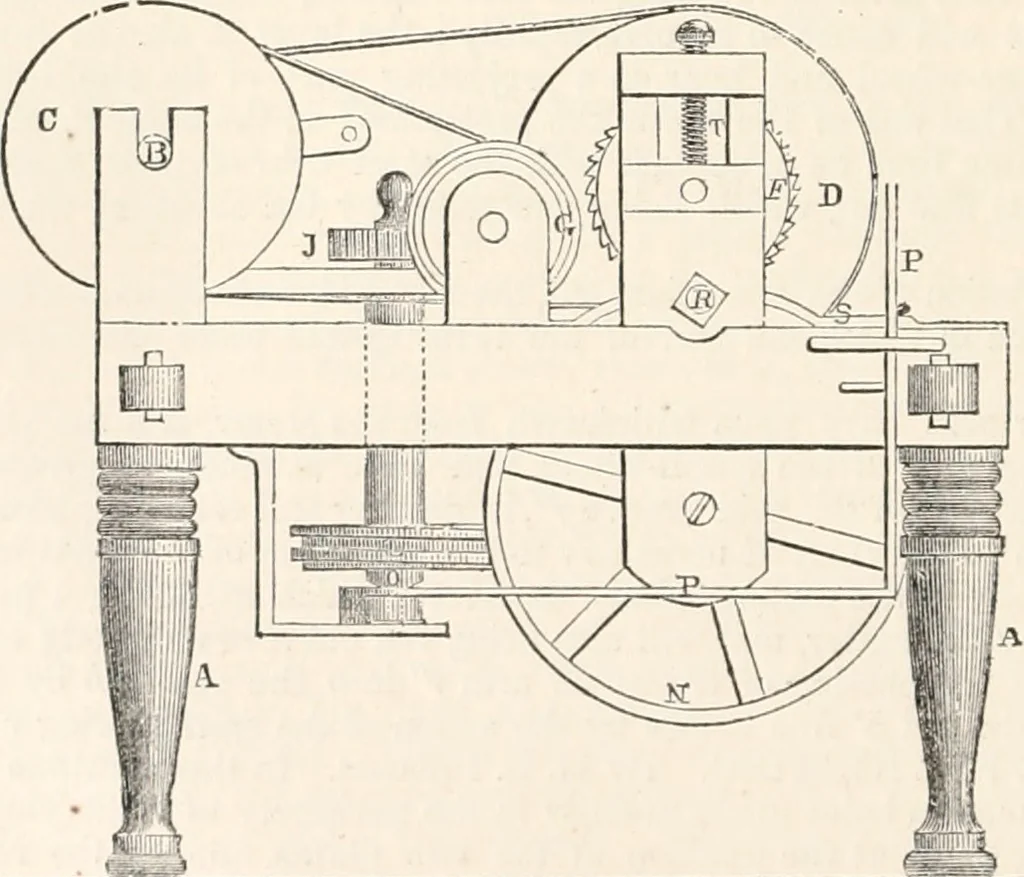

rcu-lar cutter. The dotted lines Q, Fig. .3265, mark its situation, which is opposite to the screw-nut R,Fig. 3266, which confines the friction-wheel box in its place. To react against this friction roller, a simi-lar one is placed opposite to it, and bears upon the fixed portion of the… … Having thus fully described the construction of this machine, its operation will be readily understood.The shaft B being made to revolve by any motive power, the blanks are dropped into the holes in thoblank-wheel N as it approaches the cutter, and are held firmly whilst being cut by the pressure…
