Brown, Harold Haven, 1869-1932 · Chicago, Atkinson, Mentzer & company · leaf 191

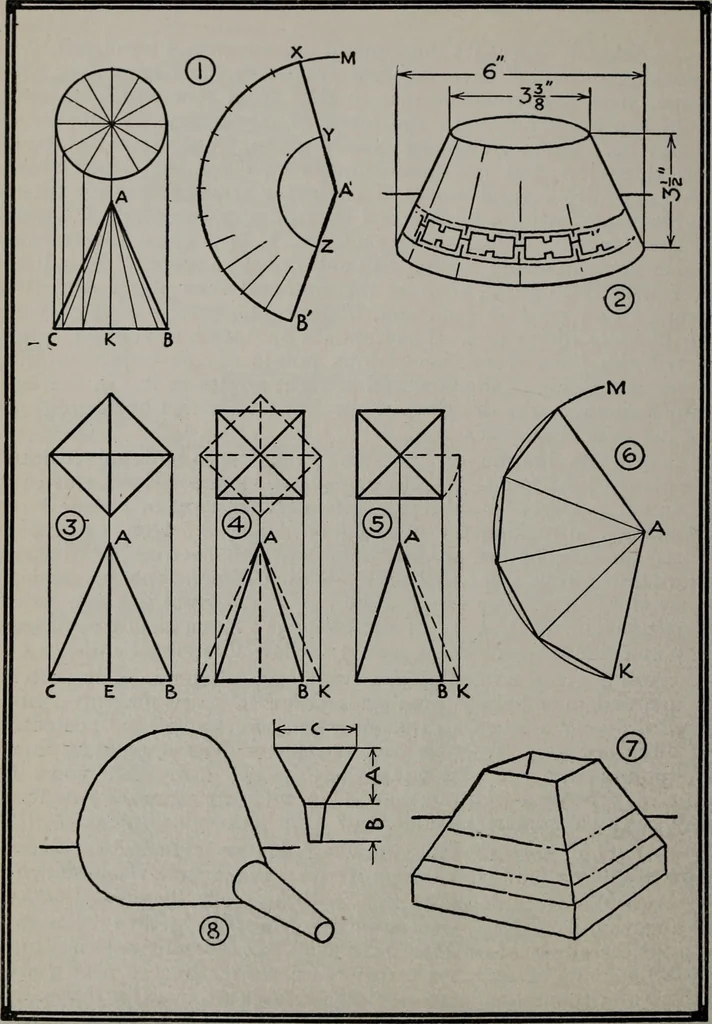

w are they alike? How different? Why are no side views shown? In order to understand the conventional lines used, referto Diagram 2 on the preceding page. Line a is used to representthe visible edges of objects; b is used to represent existing butinvisible lines of objects; c denotes a center line;… … DIAGRAMS ILLUSTRATING METHODS OFDEVELOPING THE SURFACES OF OBJECTS. 182 SURFACE DEVELOPMENTS 183 Will figure ABX in 1, if cut out, rolled and fastened, form atrue cone? Try it and see. Make a working drawing first, ofthe size desired. Front and top views only are needed. Notethat the actual surface…
