Brown, Harold Haven, 1869-1932 · Chicago, Atkinson, Mentzer & company · leaf 193

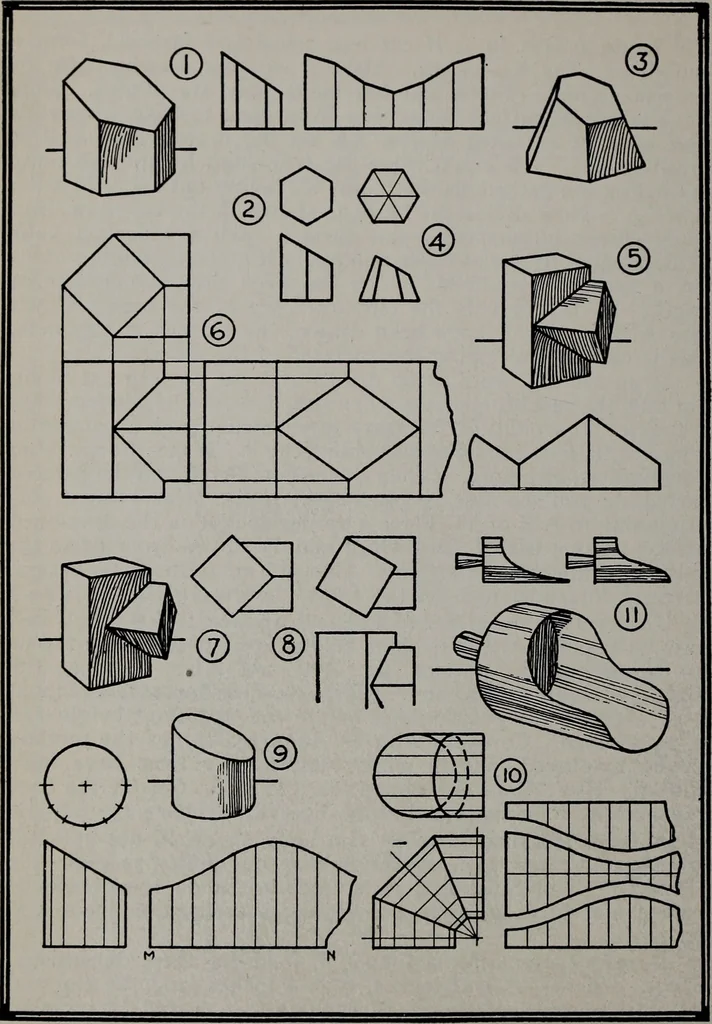

pattern. Make a working drawing of a lamp shade, 7, one-half fullsize (if advantageous). A design may be applied to each sideif desired. This must first be studied out upon the developedsurface and then properly shown, foreshortened in front andtop views. Develop patterns for a funnel, 8, following… … SECTIONS AND INTERSECTIONS OF OBJECTS ANDTHE DEVELOPMENT OF THEIR SURFACES. 184 SECTIONS AND INTERSECTIONS 185 Study the many different patterns which a tinsmith uses. Hemust not only know how to develop all sorts of surfaces, but beable to make accurate allowances for seams and joints and to…
Drawing · Decoration and ornament
