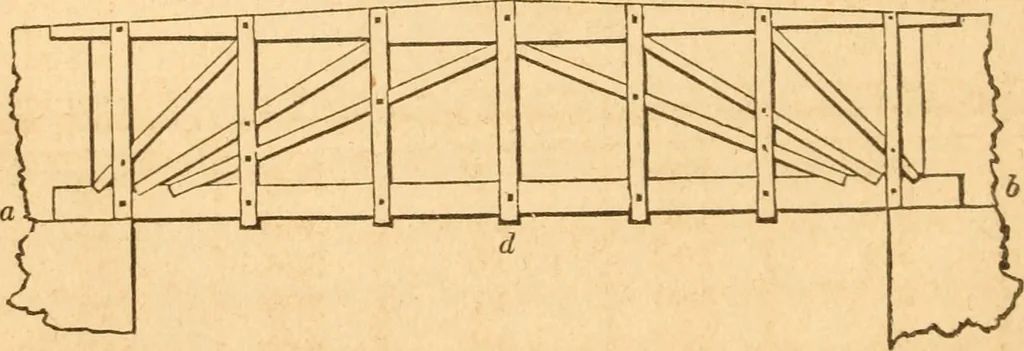

od of constructing wooden bridges, wherethe banks of the river are higli enough to permit the use of thetie-beam, a b. The upright pieces, c (/, are notched and boltedon ni pairs, for the support of the tie-beam. A bridge of thisconstruction exerts no lateral pressure upon the abutments. Thismethod… … Fig. 226. 314.—Fig. 227 exhibits a wooden bridge without a tie-beam.Where staunch buttresses can be obtained, this method may berecommended; but if there is any doubt of their stability, it FRAMING. 177
