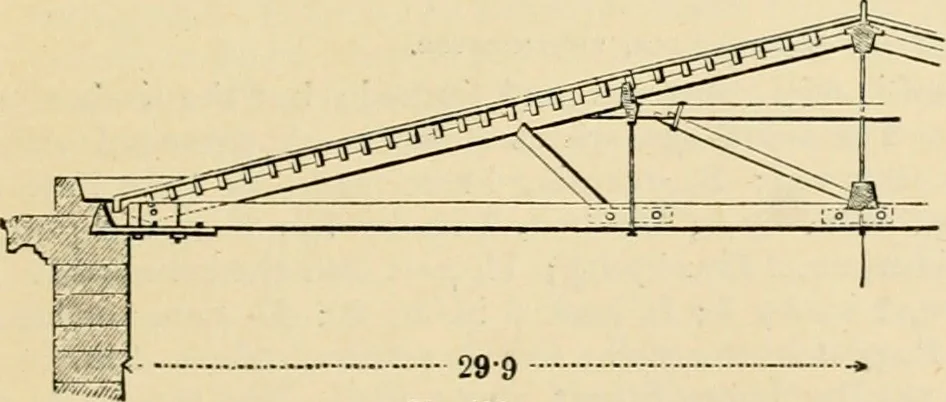

lie sole plate of the shoe is prolonged inwards,to admit of its being secured by bolts to the tie beam. The head of the principal rafter a,and t!ie end of the straining beam a b, are inserted into a cast iron socket, shown in detailin fig. A. The suspension rod passes through the solid part of the… … 630 THEORY OF ARCHITECTURE. Book II. n.e rattii-s, the other purline at B is also carried in a cast iron rest 1)olte(l to the raltir. com re susponiliiig rod passes through a cast iron socket, which sirvcs as :.n ahiitmeiit to the main struts. Si;iiilar abutments are providtd tor the lowei end ot…
