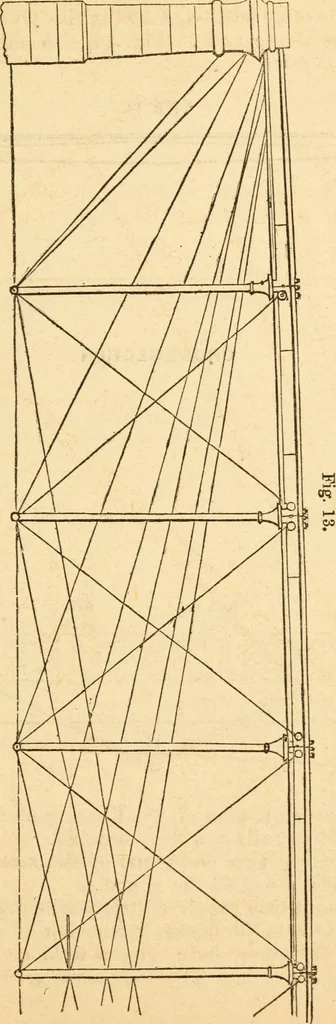

Fig. 13, is an elevation of a pier and four pannels outof eight of which the bridge is composed. The s.vstem ofarranging the braces and connecting rods is exhibited inthis fis-ure. PRACTICAL MECHANICS. 179 … 180 PRACTICAL MECHANICS. Fig. 14, is cross section, showing the floor bracing, andthe position of the rails. Fig. 14, also shows in section,the roof and posts. Fig. 14.
