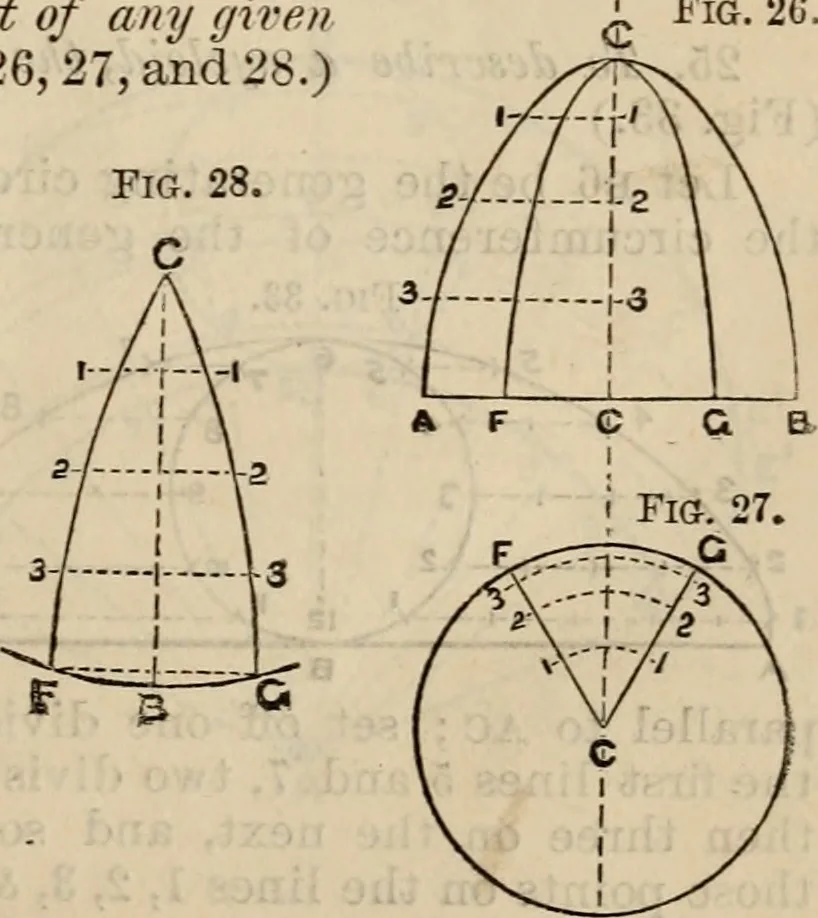

ired. 23. To find the development of any (jvrenpoHion of ajmraholoid. (Figs. 26, 27, and 28.) The development is foundin the same manner as thatof a portion of a segment ofa sphere, as described in thelast example (No. 22), withbut one exception—that is,the length of the radius fordescribing the… … u GEOMETRY. FIC 24. To find tlie dcvelojyment of an entablature plate.Let fig. 29 be the side elevation, fig. 30 the front elevation^fig. 31 the plan, and fig. 32 the development of the figure; divide ADC (tig. 30) intoeight equal parts, andfrom the points of inter-section draw lines pa-rallel to…
