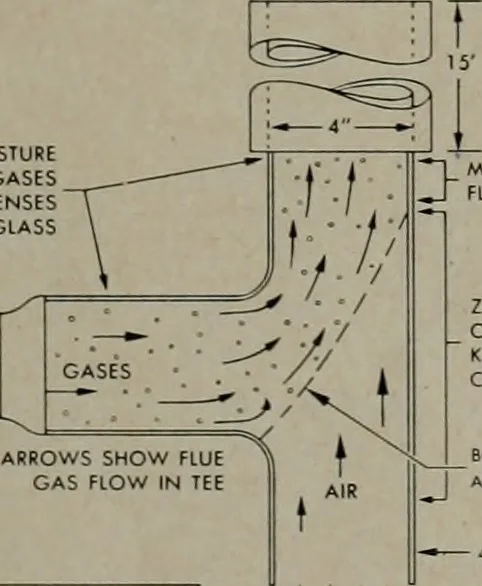

Fig. 4: Showing how condensate inside of open glass teetraps flow of vent gasses. ZONE WHERE MOISTURE FROM FlUE GASES CONDENSES ON COLD GLASS … Fig. 5. FLOW AND MIXING OF FLUE GAS AND AIR STREAMSIN A GLASS TEE. BASED ON VISUAL OBSERVATIONOF SMOKE FLOW AND MOISTURE CONDENSATION,SHOWING SMOOTHNESS OF FLOW AND LACK OFTURBULENCE ZONE WHERE AIR ENTERINGOPEN BASE OF TEEKEEPS FLUE GASES FROMCONTACTING GLASS WALL BOUNOABY LINE OF I AIR AND GAS…
