Architectural drawing : a textbook that combines the parctical instructions and examples that the student needs, with the suggestive programs, supplementary problems, etc, required by the teacher, written by an architect of wide experience who has also taught the subject for years at Teachers' College, Columbia University, and Mechanics' Institute, New York (1920)
Teale, Oscar S · New York : U.P.C. Book · leaf 122

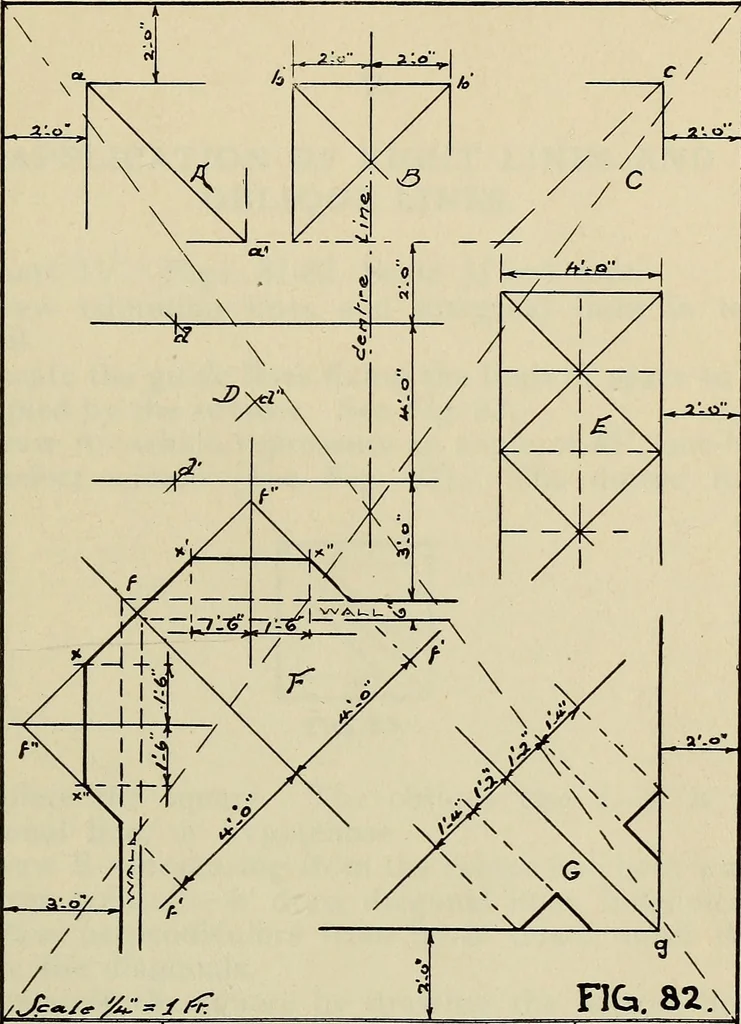

$£#§$6mi* urn: FIG. 81. r 7 F»P-«*■■> FIRST TEWl … &\tfm. ^?^^ te* ■ , fhrst re** APPLICATION OF RIGHT LINES ANDOBLIQUE LINES. Chart IV, Figs. 81-82, Scale 54= 1 foot. Draw trimming lines and marginal lines in leadpencil. Locate the guide lines fixing the limit of space to beoccupied by the subject. See Fig. 82. Draw A—which represents an angle…
