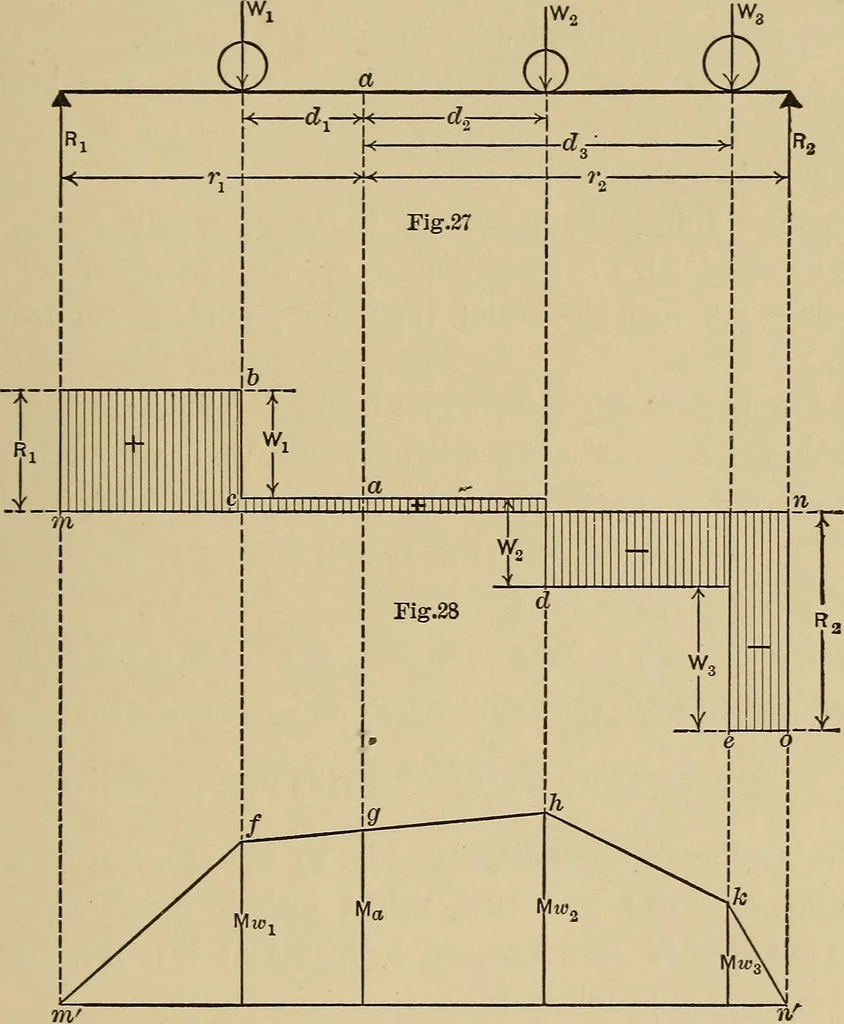

Fig. 26. BENDING-MOMENT AND SHEAR DIAGRAiMS 31 line, or axis, mn, and having determined to an appropriate scalethe values of Ri and R2 from the given weights Wi, W2, and Wsywe proceed as follows: By our definition the shear at any section to the left of Wiis Ri, which gives the point b of Fig. 28.… … Fig. 29. point of application of Wi is passed the shear becomes Ri — Wi,giving the point c, and this shear continues imchanged up tothe point of appHcation of W2, but immediately this point ispassed the shear becomes Ri — Wi — W2, giving the point d, 32 THE ELEMENTS OF MECHANICS OF MATERIALS the…
