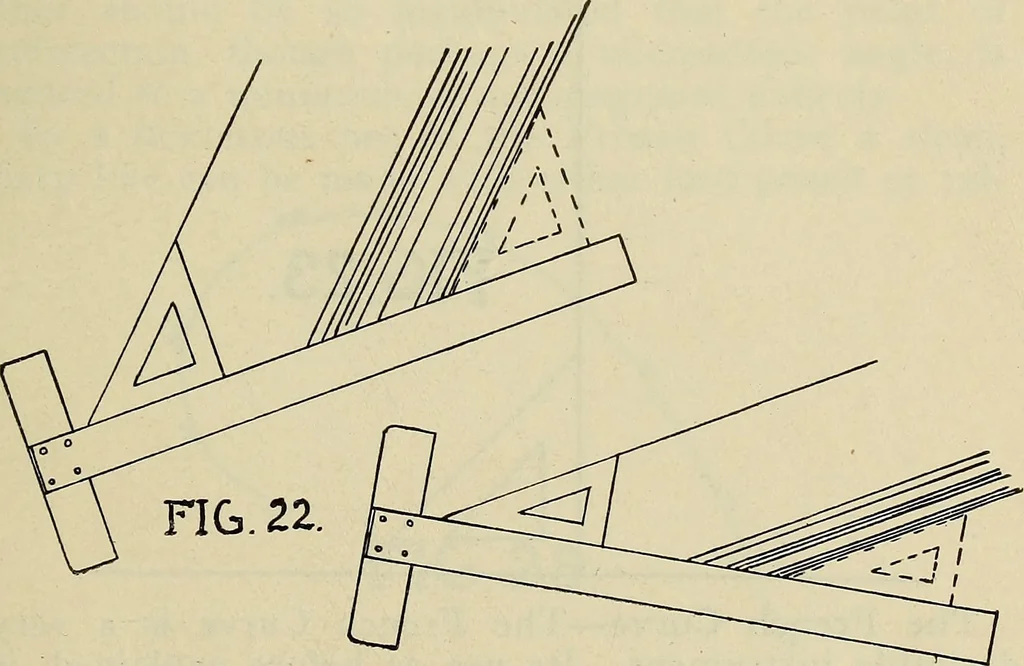

on with the T-square or another set-square. Two set-squares or triangles have been described,and the method of handling obtains to both. In otherwords, the two set-squares are used in one and thesame manner, the only difference being the angularityof the line drawn. It may be found convenient… … 32 ARCHITECTURAL DRAWING for doing this, is to place one edge of a set-squareparallel to the line to be duplicated, then bringingthe T-square blade, with its upper edge resting againstthat edge of set-square, most conveniently remotefrom the edge which parallels the line to be drawn;and then, by…
