Architectural engineering. With special reference to high building construction, including many examples of Chicago office buildings (1895)
Freitag, Joseph Kendall · New York, J. Wiley & sons; [etc., etc.] · leaf 166

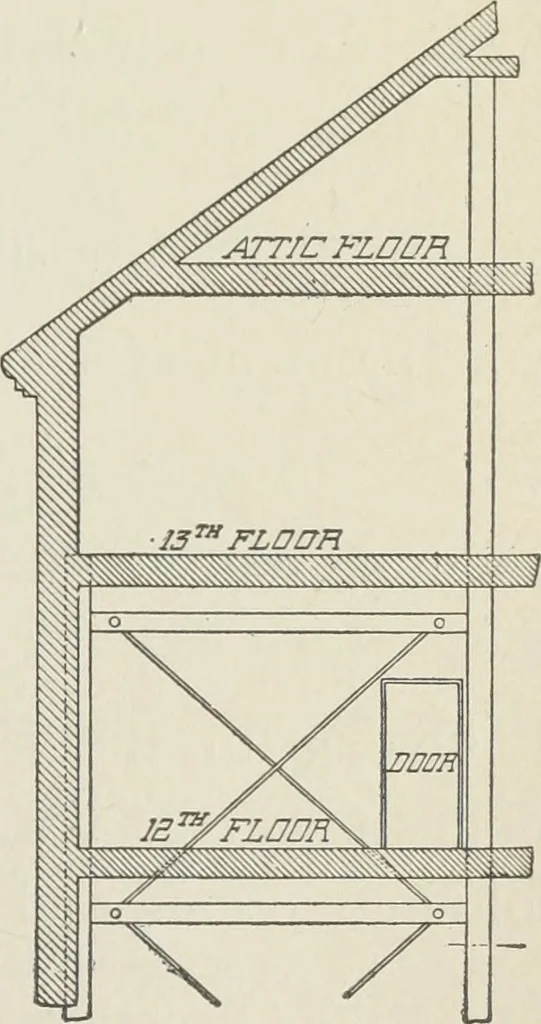

es of the columns.These blocks, therefore, fitted into therecesses made by the flanges of theZ-bars so closely that the f cap-plates were brought into direct shearentirely around three sides of theblocks. The shear resistance of theplate, together with the weight of thebeam on it, was more than… … Fig. 95 148 ARCHITECTURA L ENGINEERING. under the channels of the struts, and the medium betweenthe strut and the bracket-angles must act as a beam aswell as a filler. Fig. 95 shows a partial cross-section ofthe building with doorway, etc. This shows the reason forplacing the pin-points so far from…
