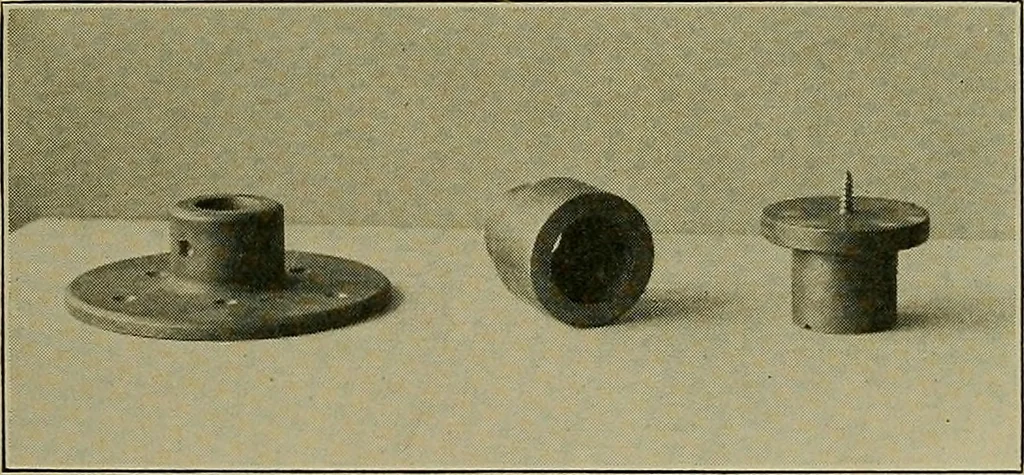

Fig- 47- the wood a little smaller than the screw, so that when the chuckis screwed in place, the wood will not spht, Fig. 47. (b) Turn the … Fig. 48. Face Plate — Bell Chuck — Screw Chuck. blank to the design, (c) clean out one end and rechuck the same asabove. In some schools, napkin rings are turned on a bell chuck. Fig. 48.The wood is first turned between centers to a diameter so that oneend can be driven into the chuck. Held by this…
