Klenke, William Walter, 1888- [from old catalog] · Peoria, Ill., The Manual arts press · leaf 75

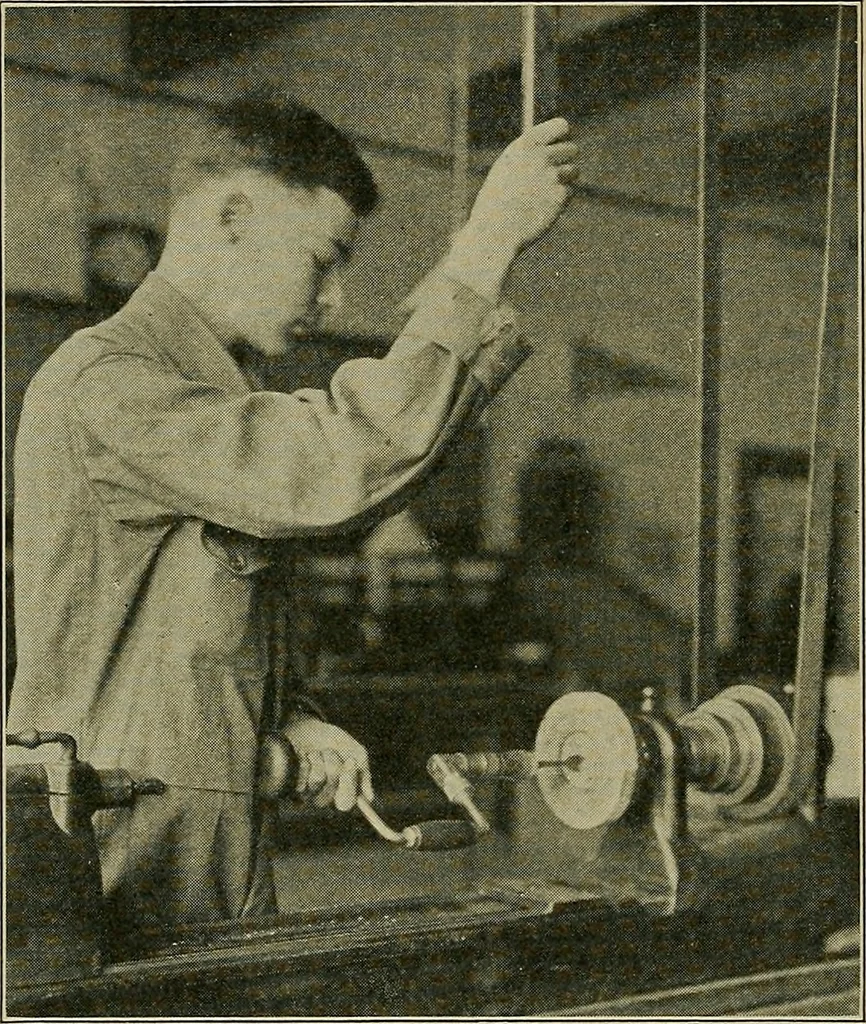

MAIR RtCElVER DUTTGN box Plate XXIII. 72 ART AND EDUCATION IN WOOD-TURNING Now (h) remove the wood from the face-plate, and rechuck. Inturning the design shown in Plate XXIV, (i) cut the chuck Y^deep, the height of the edge, and true up the face to the requiredthickness, (k) boring the hole in the… … Fig. 50. Boring Face-plate Work. bit. Since a Forstner bit has no spur to center it when boring, it isadvisable to cut in a short distance with an Y^! chisel to make sureof hitting the center. (See Lathe Boring, page 78.) (1) Shape the re-maining part of the case, (m) sandpaper and finish. When…
Woodwork (Manual training)
