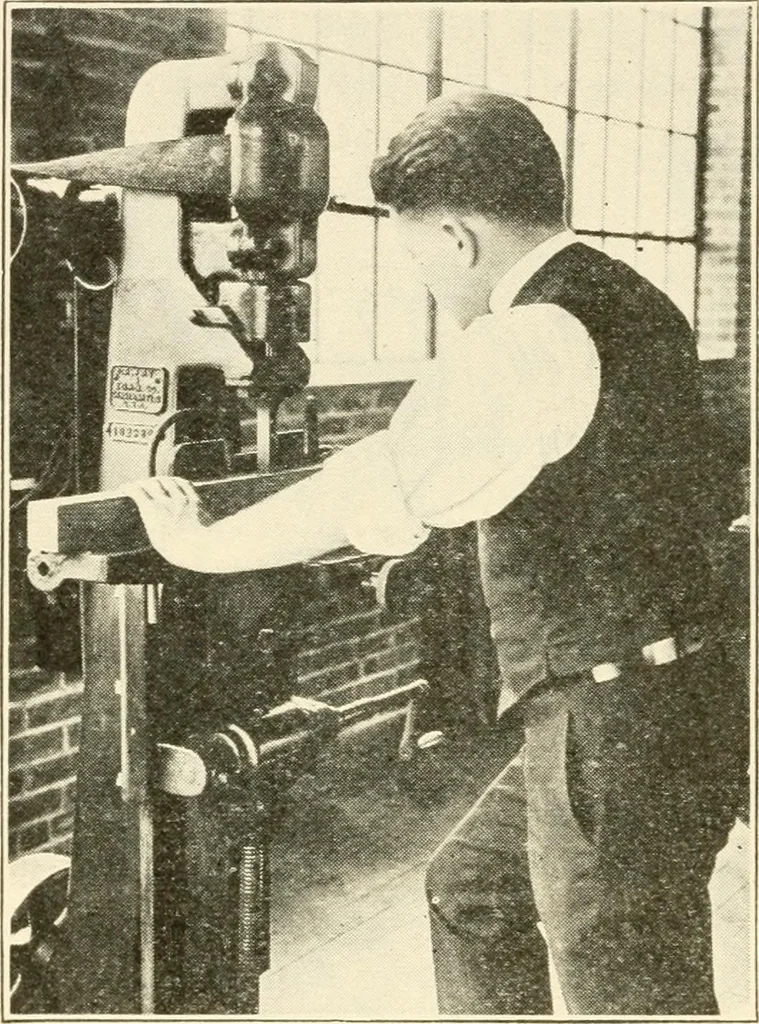

aisedfrom the ta1:)le. andthe stops which de-termine length posi-tion, if these arcneeded. In operating, pushthe foot control iothe lloor, Fig. 195.If the weight of thetable is not sufficient to release the chisel, a touch on thefoot release Avill be sufficient. In removing the bit, always return… … Fig. 195. Operating Vertical HollowChisel Mortiser. WOODWORKING MACHINES. 123 table, and table and stock are rolled along from side toside for successive cuttings by means of a handwheel. 120. Tenoner.—A tenoner, Fig. 196, is a machinewhich, because of its dangers to the operator and the factthat…
