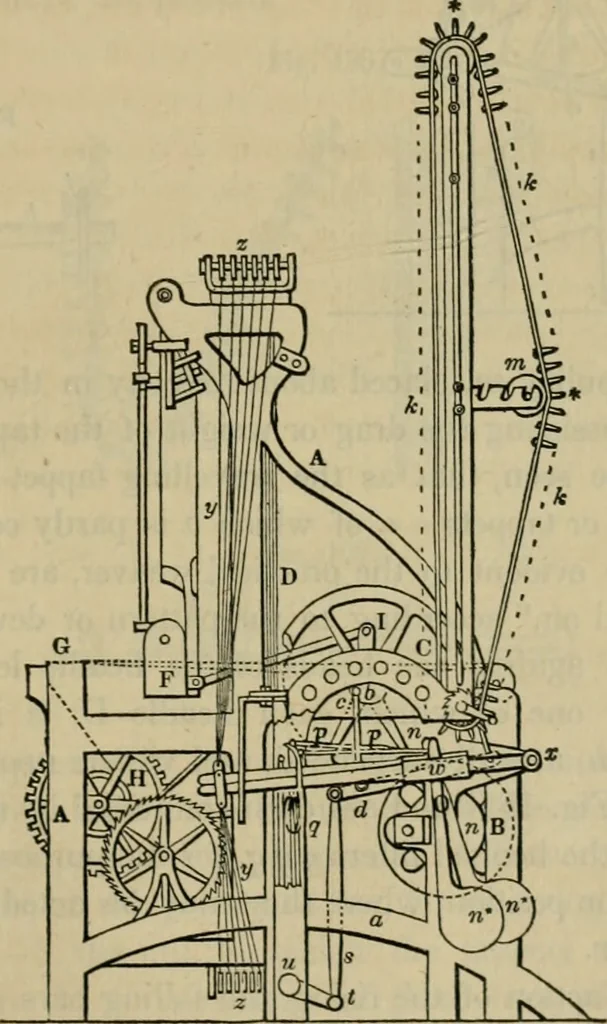

tion of the same. The ordinary framingor loom-sides, are shown at A A, supporting the warp roller B, fromwhence the warp threads C, proceed through the headles D, alsothrough the reed E, (see Fig. 184) of the vibrating lay F, (Fig.185) over the breast beam G, to the cloth roller H, as usual.… … Upon the end of the crank shaft I, is fixed the crank plate 6, (seeFig. 185) revolving in the ordinary direction, and actuating thelink c, (see also Fig. 186) attached at its upper end, by a pin, to thecrank plate 6, and at its lower end to the lever d. This lever d,vibrates upon its fulcrum at c,…
