Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 131

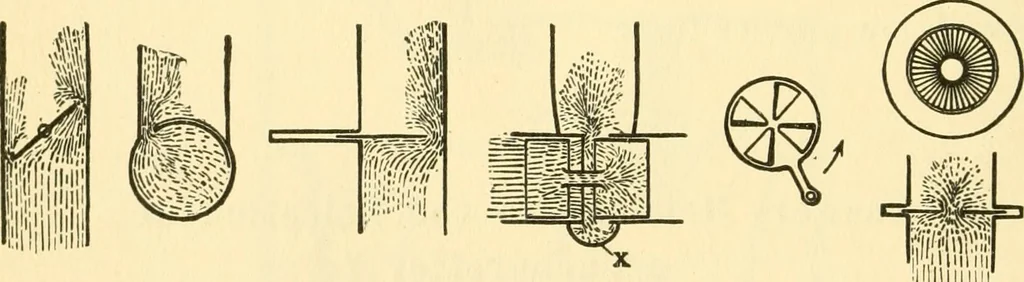

aso-Une through the nozzle. A carburetter too large would notonly waste fuel, but reduce the power of the engine byfurnishing a weak and variable mixture. Ques. What are the results if the carburetter be too small ? Ans. The engine will not develop its rated power sincethe carburetter cannot… … iiiiliiii Fig. 46.—Several designs of throttle valves are here shown partiallyopened, where the effects of separation and deflection of the liquid globulesare illustrated for each case. It will be seen that all these throttles act asseparators when not fully open. The first four throw the liquid…
