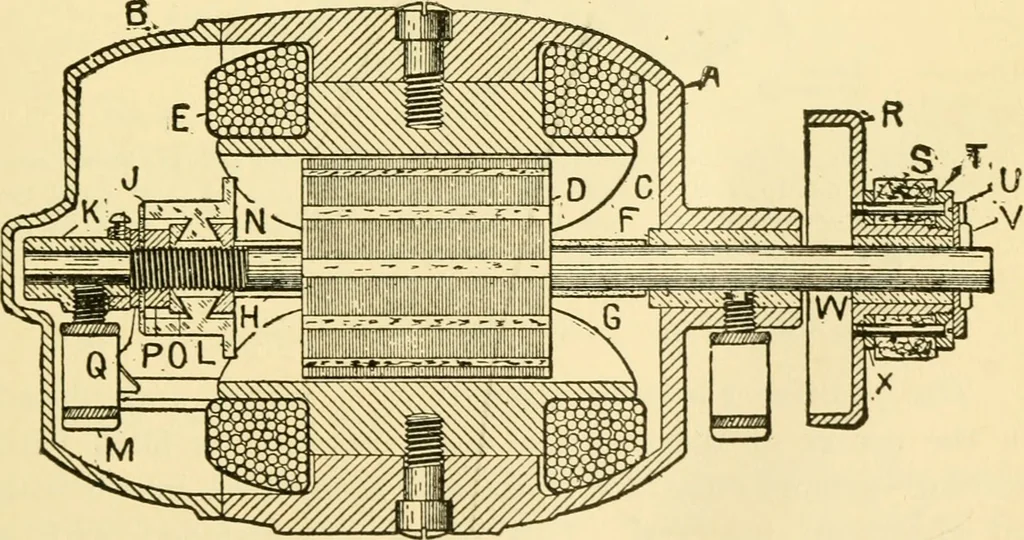

oles of the magnet.The basic principles upon which dynamos and magnetosoperate are the same. Ques. Into what classes are magnetos divided? Ans. They are divided into two classes: i, low tension,and 2, high tension, according as they generate a currentof low, or high voltage. Low tension magnetos… … Fig. 59.—Sectional diagram of the Apple igniting dynamo. The partsshown are: A, cast iron body containing the moving parts; B, hinged lidof the body; C, one pole piece of one of the field magnets; F, brass bear-ing of the armature spindle; G and H, fibre tubes surrounding the spindle; K,brass…
