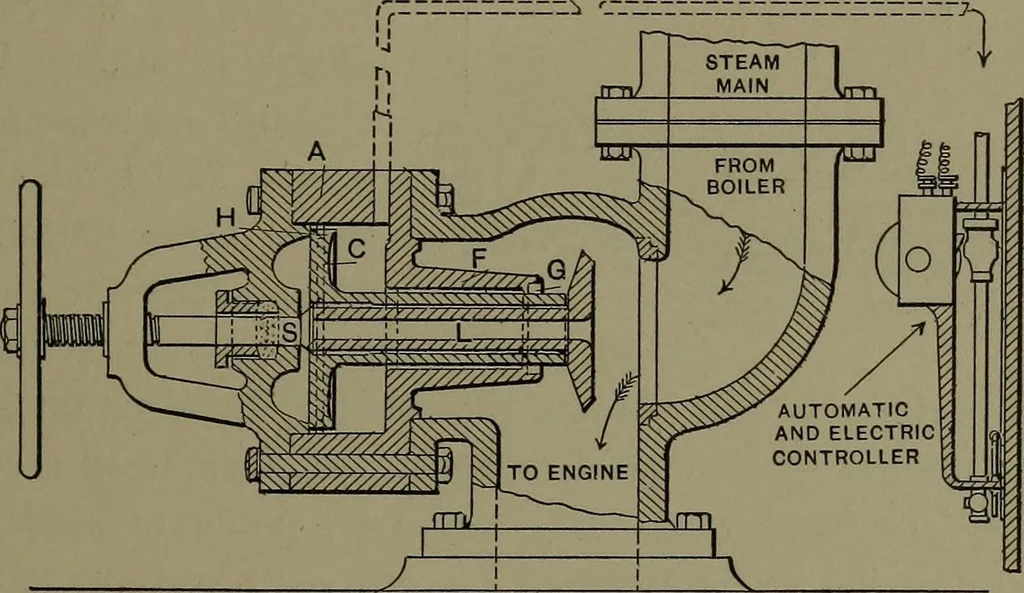

exhaust steam-heatingsystems. The two-winged valves are nearly bal-anced, requiring only a small weight to bal-ance them and prevent chatter of the valves. STEAM POWER APPLIANCES. lOI 237. AUTOMATIC QUICK-CLOSING VALVE. The bonnetpiston C has a larger area than the valve disk and communicateswith… … 238. The automatic electric controller, shown at the right, has a mag-netic dog that disengages a weight which falls against a lever and opensthe relief valve and quickly closes the valve by the greater pressure onthe rear of the piston. The screw spindle S closes the valve as an ordinary stop…
