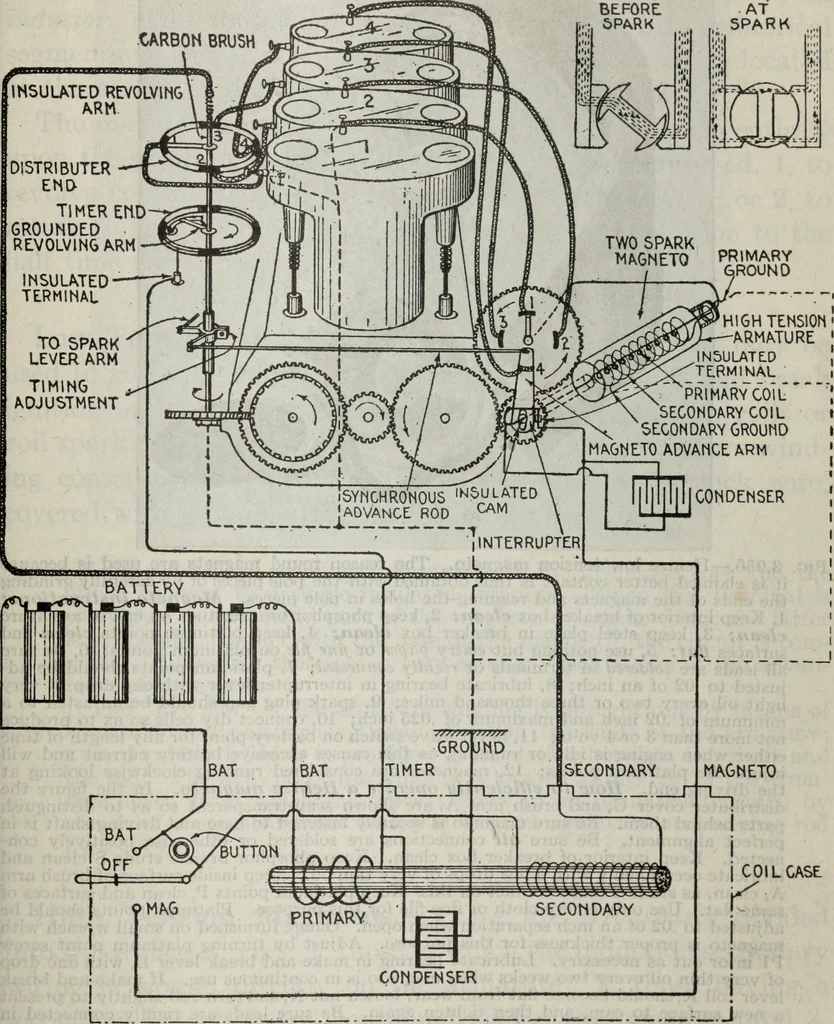

park is ac-complished by shifting the circuit breaker around the inductor shaft, to which isattached the circuit breaker cam. The timing range is 35 degrees. Inductor Magnetos.—In this class of magneto, the arma-ture is fixed so that it does not revolve and is located with thesector shaped heads of… … Fig. 3,955 to 3,957.—Double ignition consisting of a two spark high tension magneto system,and a battery synchronous ignition system with engine driven distributer. Fig. 3,955elementary diagram of connections; fig. 3,956, position of magneto armature just beforetime of spark; fig. 3,957, position…
