Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 61

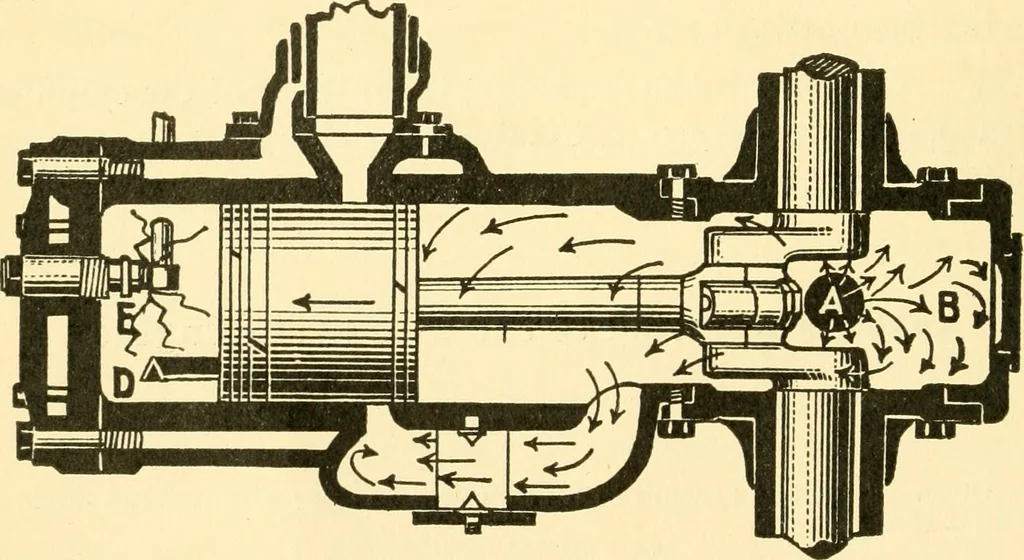

uncovers 34 AUDELS ANSWERS the admission Dort, as in fig. lo, and the new charge,previously compressed in the crank case, is admitted tothe cyHnder, being deflected upward to the head end ofthe cyHnder by a screen or deflector plate set in the endof the piston. The inrush of the new charge helps… … Fig. 8.—The two cycle engine: first stroke. The inward stroke of the pistoninduces a charge of the mixture at A into the crank case B, and compressesthe previously admitted charge into the cylinder D; the subsequent ignitiontakes place at E. Ques. What advantages has the two cycle engine over the…
Automobiles
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
