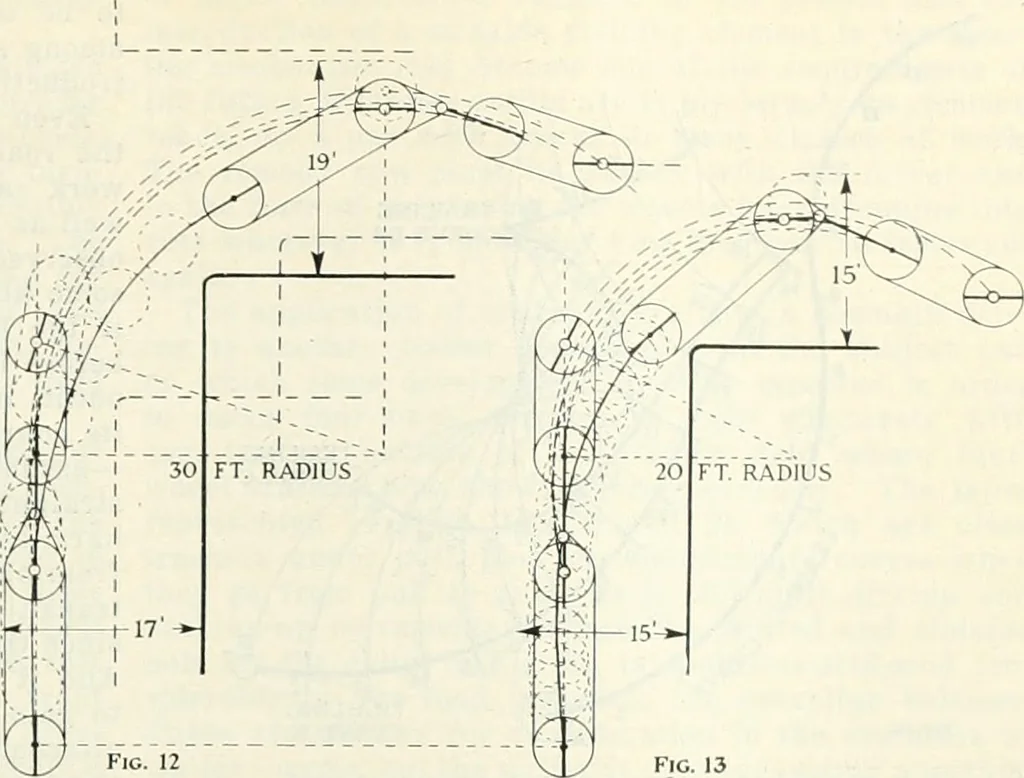

trailercurves, need not be equidistant. The data for construc-tion are two, (1) that the trailing point is a given dis-tance from the leading point, and (2) that the trailingpoint wheel follows a curve to which it can be at everypoint tangential. From each of the points on the leadingcurve there… … Fie. 13 Turns made with a trailer outfit on a 30-foot road with turning radiusof respectively 30 and 20 feet. The outfit is In both cases a truck of 10 feetwheelbase drawing a four-wheel trailer of 15 feet wheelbase, but the overhang ofthe coupling hook is made longer in the second instance to…
