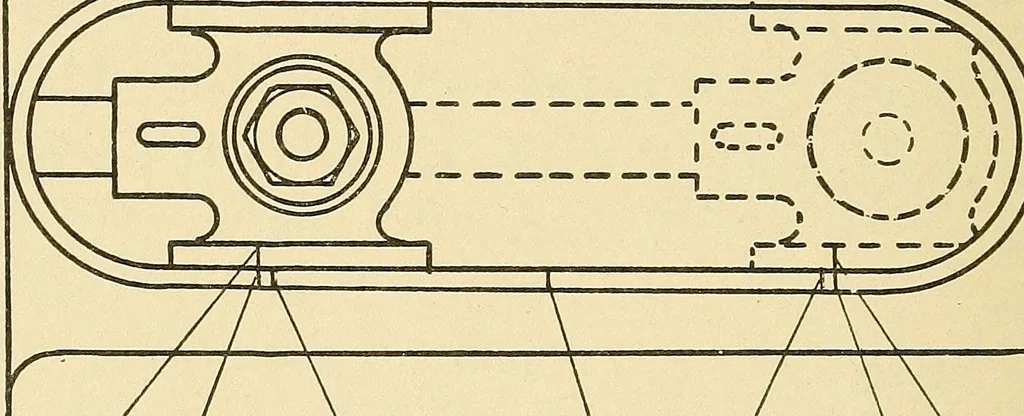

ur stationary mark on the floor. Now rollthe engine over to opposite end till the shoe coincides withthe second or inside mark on that end, mark on fly-wheelrim corresponding with this stationary mark on the floor.Now roll the engine over the centre till shoe comes back tothis second or inside… … £ Af J5 A /y£T//o2> cf /cc#r/A/q Sr/?/Jr/A/q Po/*/ts Figure 26. made on fly-wheel rim. Roll the engine till this centremark corresponds with this stationary mark on the floor,then engine will be on dead centre on that end. Now meas-ure one-half of the distance between your other two markson…
