The gasoline engine on the farm; a practical, comprehensive treatise on the construction, repair, management and use of this great farm power as applied to all farm machinery and farmer's work indoors and out .. (1913)
Putnam, Xenophon Whiting, 1867- · New York, The Norman W. Henley Pub. Co. · leaf 67

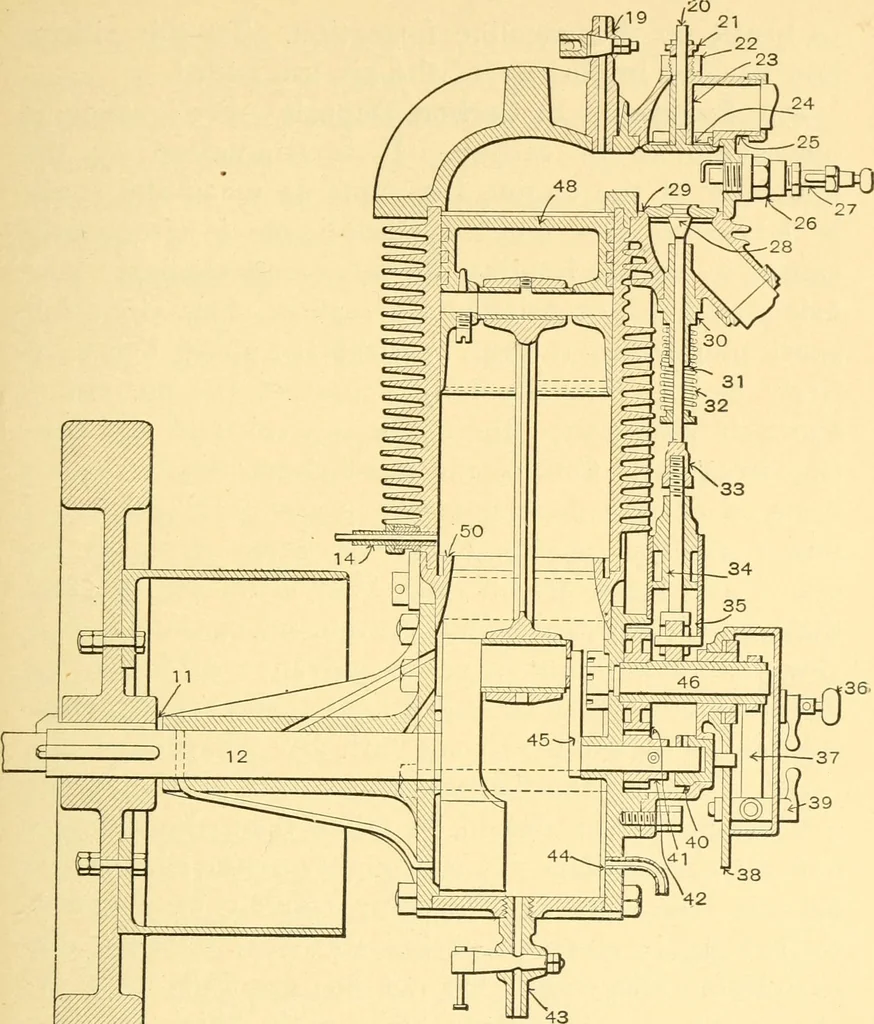

s andcause heating of piston or cylinder. Carbon in thecylinder is one of the most frequent troubles withwhich the gasoline engine man has to contend. The lubricating oil is not the only source of thesecylinder deposits. An excess of oil may cause them,or too much gasoline. All the gasoline vapor… … Fig. 13.—Sectional View of Air Cooled Motor. Figures De-note Following Parts : 12—Crankshaft. 14—Oil Pipe. 19—Petcock for Compression Release. 20—Valve Spring Key.21—Valve Washer. 22—Inlet Valve Spring. 23—InletValve Guide. 24—Intake Valve. 25—Valve Cage. 26—Sparkplug. 27—Sparkplug Porcelain.…
Internal combustion engines · Farm engines
Internet Archive · University of Connecticut Library · Public Domain Mark 1.0. Free to use for anything.
