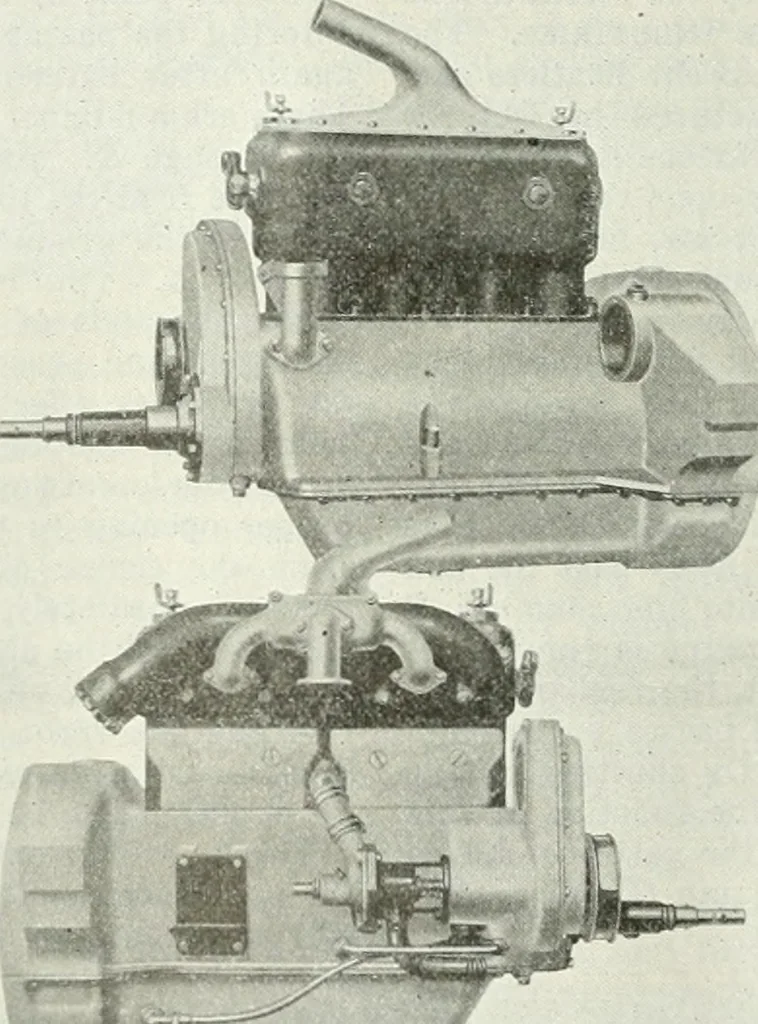

s IV2 in- in length. The connecting rods are I-section drop-forgings, 10y2 in.long, center to center. The lower rod bearings are 1% in.in diameter by 2 3/16 in. in length. As a means of secur-ing compactness, the center line of the big end connectingrod bearing is offset from the center line of the… … Right and left sides of Highway engine, show-ing the pump drive, manifolds, standardS. A. E. starting motor mounting and largediameter water outlet The crankshaft is carried on three main bearings whichare supported in the upper half of the crankcase. Thecrankshaft bearing dimensions are (front to…
