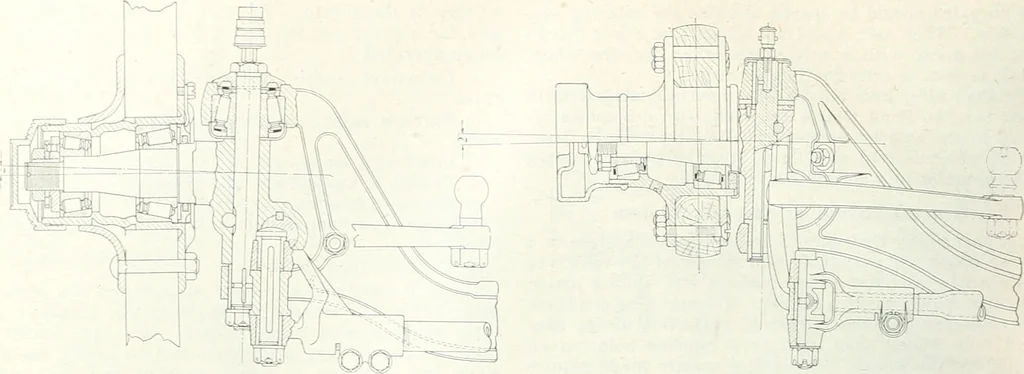

Fig. 10—Excelsior knuckle, approximately centerpoint arrangement, with front wheel brake.Note type of hall socket used on end of tie-rod MODERN STEERING SYSTEMS Automotive IndustriesDecember 21, 1922 … Fig. 3—Timken axle end used on Dorris and othercars. A roller thrust bearing is employed Fig. 6—Packard knuckle pivot ivith vertical a.visand plain bushes where felt washers are fitted. In the Crane design theaim is to maintain a small head of oil above the bearings.The use of a hair filling in the…
