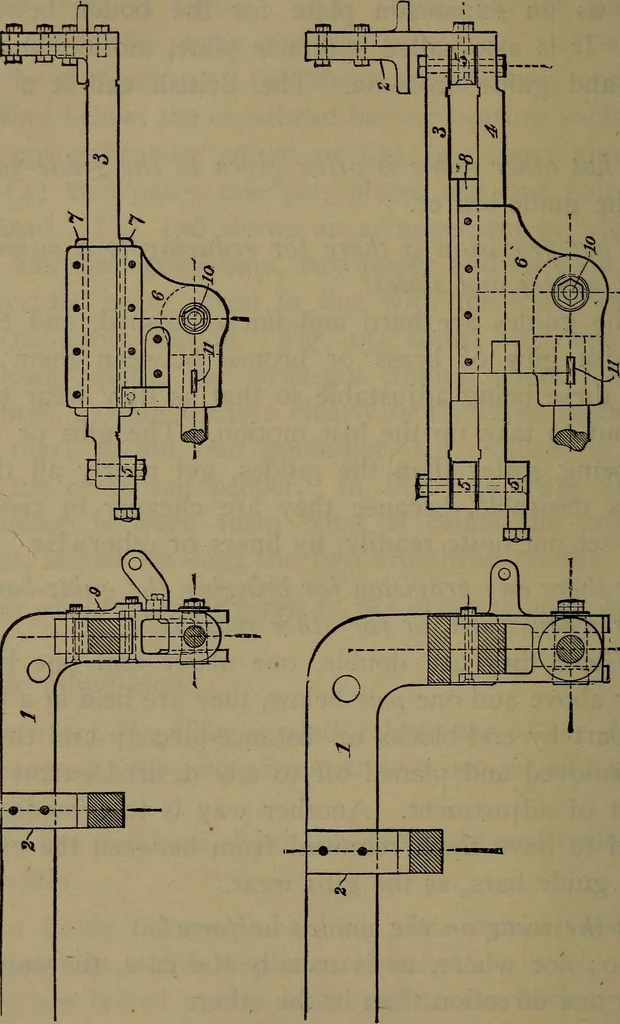

st and to have them removed from between the end-blocksand the guide bars, as the gibs wear. Q. Is the wear on the guides uniform? A. No; not where, as is usually the case, the engine runsmore in one direction than in the other. Q. Where is there the greatest strain on a slide-bar? A. At the center… … Figs. 132 and 133. Guide-bearers and Crossheads. 1. Guide-bearer. 2. Guide-bearer Knee. 3. Top Guide-bar. 4. Bottom Guide-bar.5. Guide-fillings. 6. Crosshead. 7. Crosshead Gibs. 8. Crosshead Filling-piece. 9.Crosshead Plate. 10. Crosshead Pin. 11. Crosshead Key. THE SLIDE VALVE. 225 A. The upper.…
