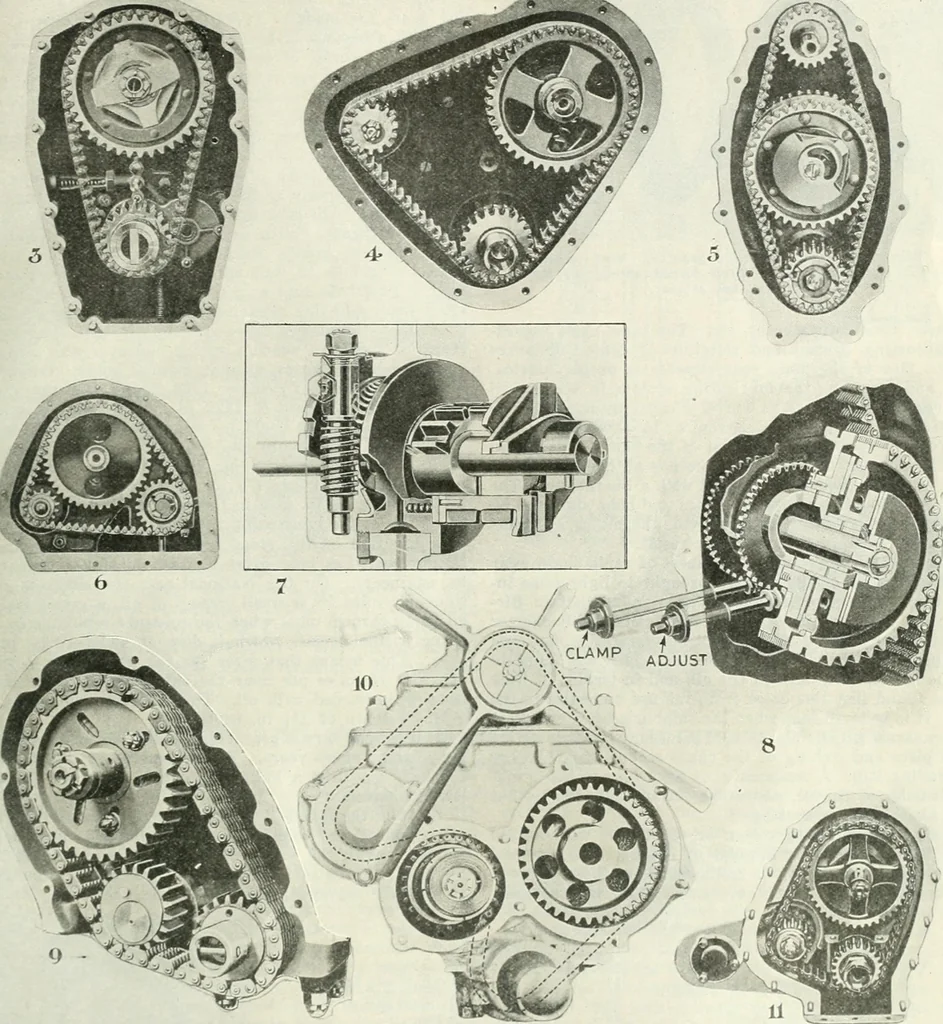

link turning on thebushing between them. This makes a unit 3/16 in. wide,1 s of which is on the sprocket teeth, while 1/16 in., theguide plate, is outside the sprocket. The other style of Whitney chain has a single guideplate in the center which runs in a groove provided in thesprocket. In this… … (3) Mcse chain installation with two sprockets, showing eccentric adjustment used on LaFayette car. (4) Typical Morse triangular drive applied to four and six cylinder engines where the camshaft is on the left and theaccessory shaft on the right. (5) Silent chain drive applicable to eight-cylinder…
