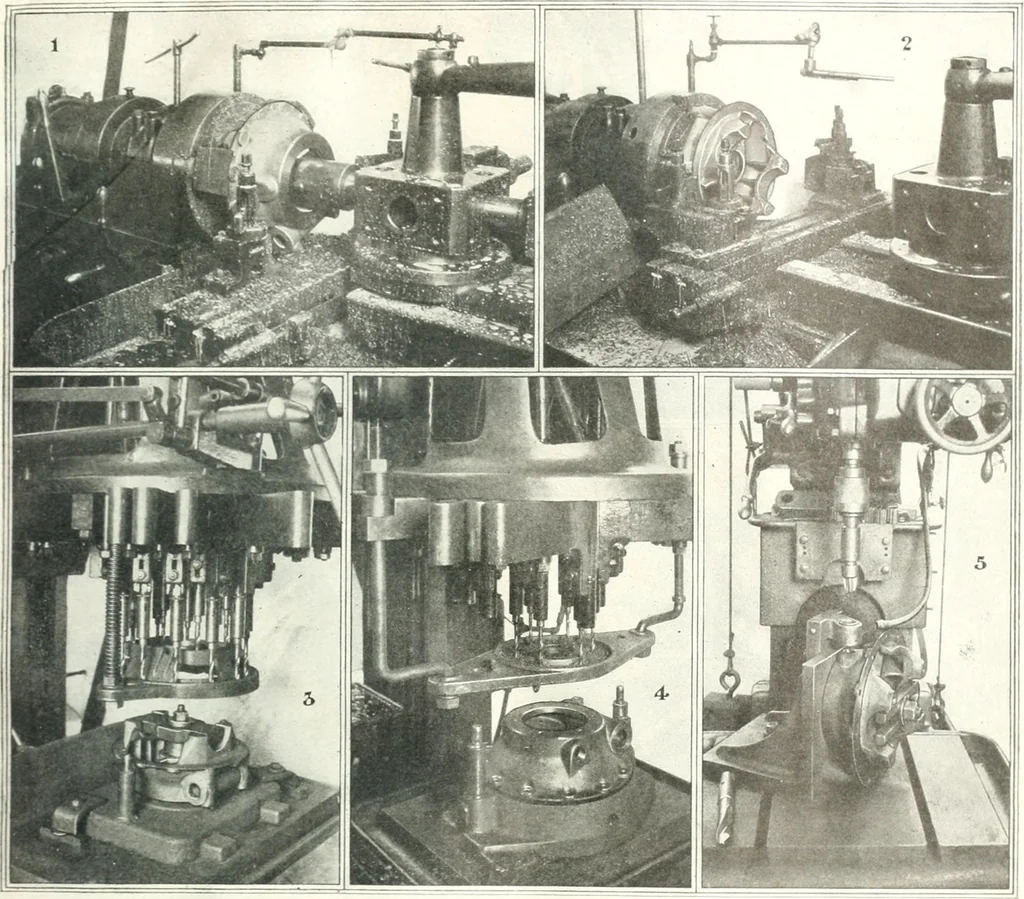

ichholds the work against the face plate of the fixture restsin the cross-bore which locates the work circumferential-ly. This operation is shown in Fig. 5. For tapping thepinion carrier face holes, a Barnes machine is employed.This is a self-centering operation and requires no elabo-rate jig or… … 1—Faciny pinion carrier face on Potter & Johnson machine. This is the first operation on the Eaton dif-ferential carrier, which ?s a malleable casting. 2—Facing the large flant/c and the surface for the bear-ing cap, the work being located from the pinion carrier bore, .i—Drilling the large…
