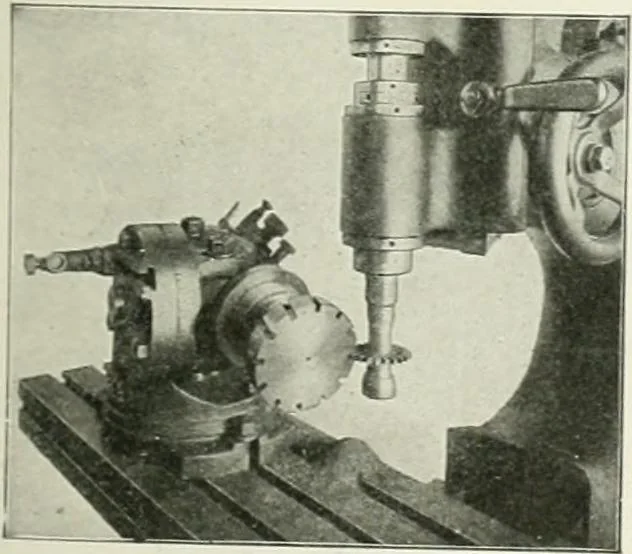

e, let alonethe accuracy and amount ofthe work performed. Fig 10 shows an exam-ple of outside and inside bevelcircular milling; and thepiece lying on the platenshows also a circular recessdone by the end-and-sidemill. In fact, all the finishon this piece—top, bottom,inside, and outside—has beendone… … Fig. 13. Method of Cutting SlutsEdge of Blauk. 817 VERTICAL MILLING MACHINE The T-slots in tbe rotary table are doue with a T-slot cutter.Tlie ball cutter used in connection with the rotary table is shownin Pijf. 11; and it can be readily seen how the handle, which is con-nected with the vertical…
