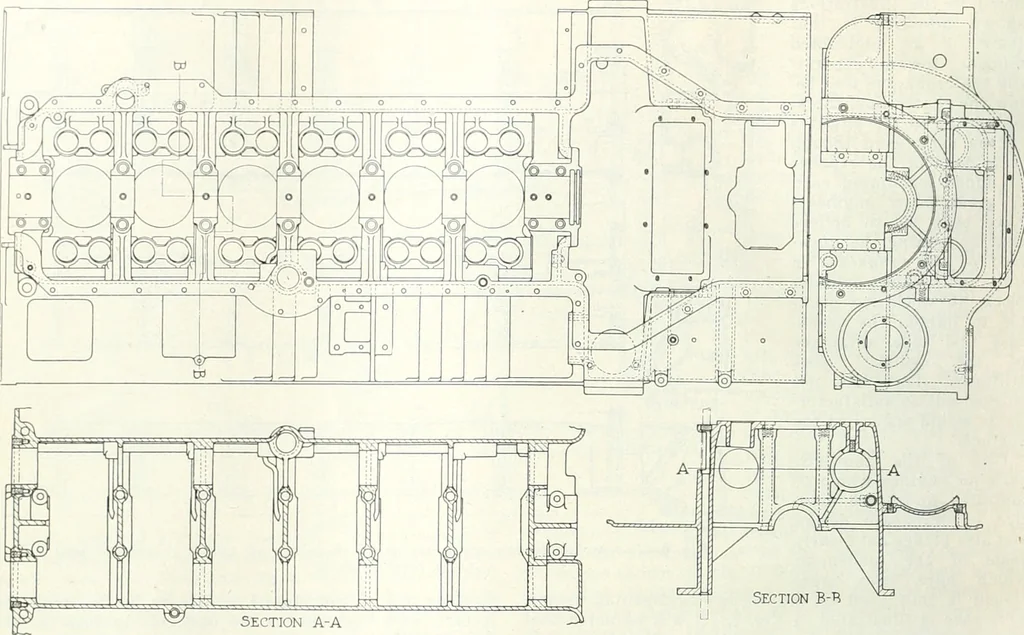

ach case the frame distortion has been trans-ferred into the engine to such an extent that it was al-most impossible in extreme cases to turn the engineover with a hand crank. The Moline crankcase is illus-trated in Fig. 7. An interesting feature which is shownin this illustration is that the… … Fig. 5 (above)—Experi-mental type of aluminumcrankcase designed by Loco-mobile company Fig. 6 {right) — Crankcaseused on Jordan Continentalengine. Note that the case isdivided well below the centerline of the main bearings
