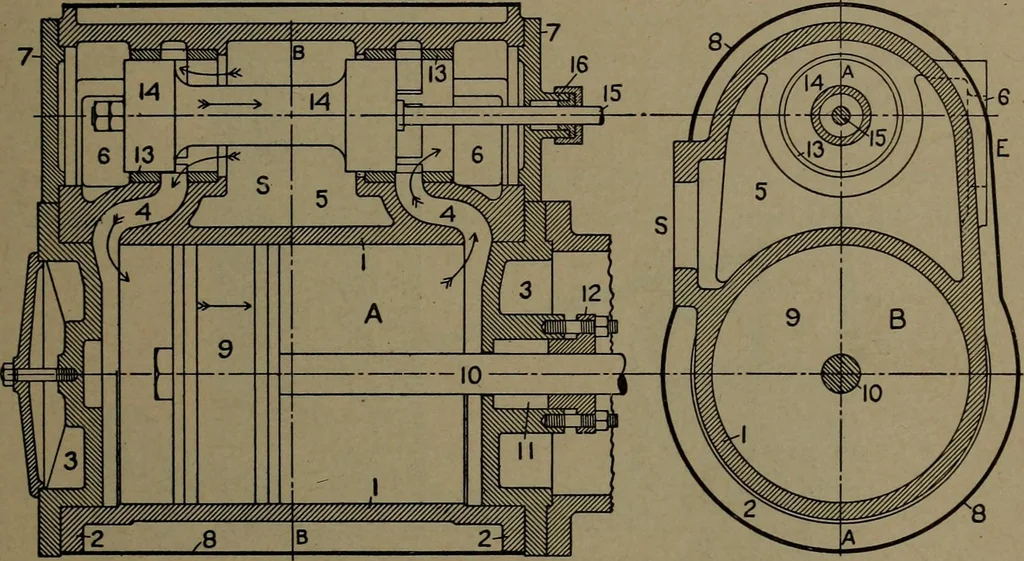

or the controlof steam flow. Since all the operations involved are performed withinthe cylinder, this part of the engine is now more fully illustrated inFig. 9, which is especially intended to show the form and arrangementof the valve, valve chamber, and steam passages. The simple slide-valve… … Fig. 9. — Cylinder with Piston Valve and Inside Admission; A, horizontal sectionalong axes; B, cross section at mid-length. 6. Exhaust spaces and 11. Stuffing box.outlets. 12. Gland. 7. Steam-chest covers. 13. Valve seats. 1. Cylinder shell. 2. Cylinder flanges. 3. Cylinder heads, front and back.…
