The internal combustion engine; a text-book for the use of students and engineers (1915)
Wimperis, Harry Egerton, 1876- · New York, D. Van Nostrand company · leaf 293

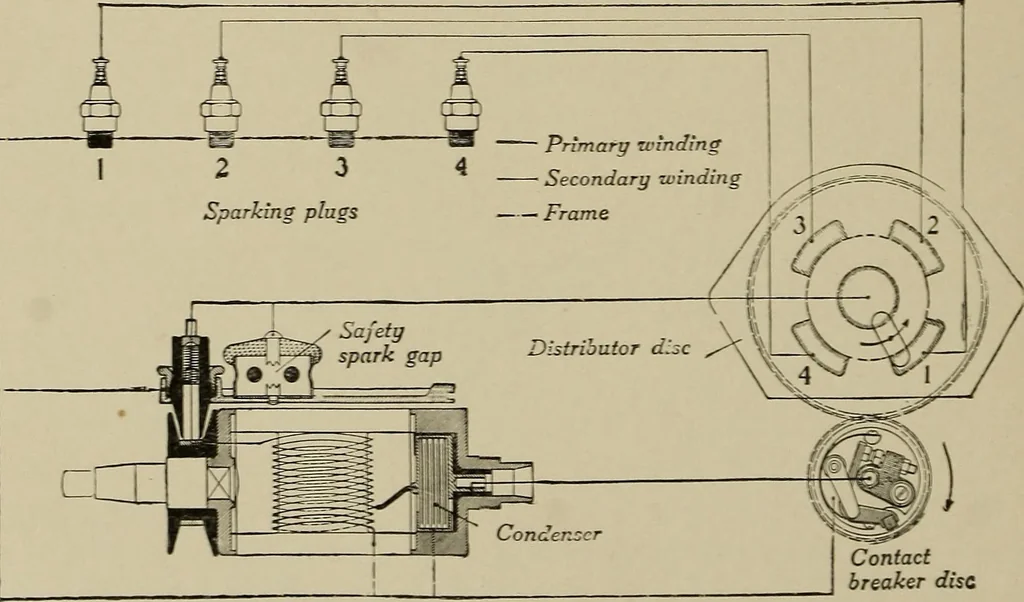

*r222»>2SW5^ Fig. 96.—Outside view of BoschlLT.Magneto. (A low-tension mag-neto is of generally similarshape.) S I etc ^Z ~l^# S 23 Primary winding 2 3 4 Sparking plugs … Contactbreaker disc Fiq. 97.—High-Tension Magneto Ignition, as arranged for 4-cylinder Engine. chap. viii| OIL AND PETROL ENGINES 2 71 165. Dual Ignition.—In a later form of high-tension magnetoignition, an accumulator and coil is added. The coil does itsown making-and-breaking, but the distributor…
Internal combustion engines
