Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 241

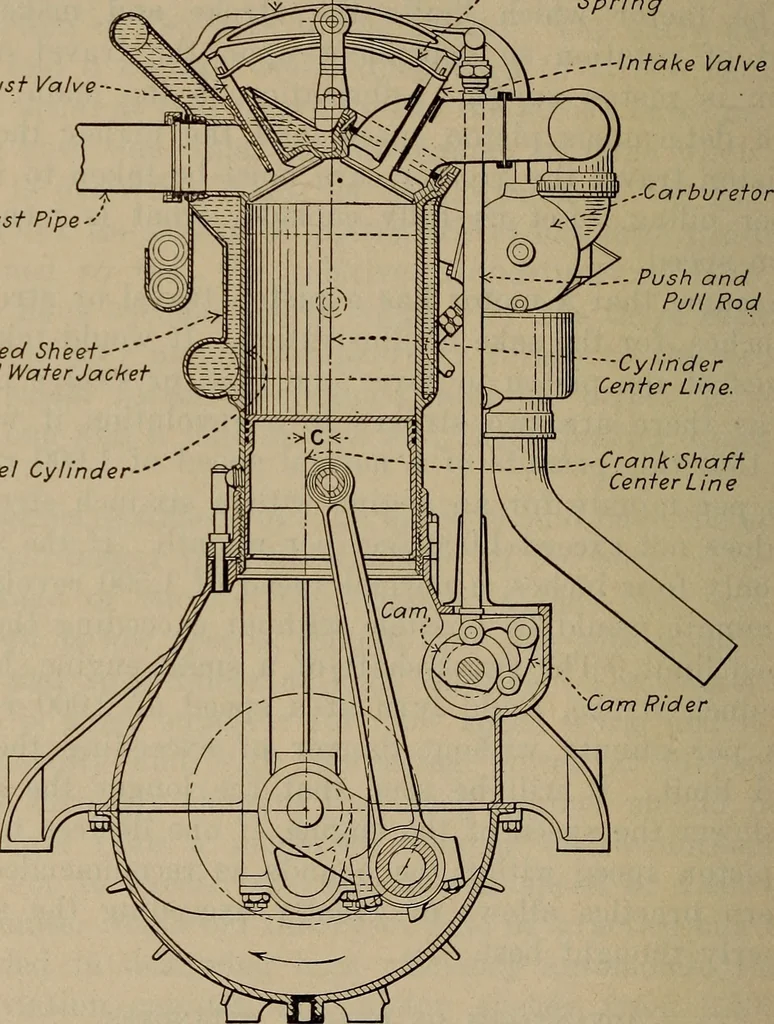

whether its center lineshould be placed directly over the center of the crank-shaft, or to one side of center. The motor shown atFig. 90 is an off-set type, in that the center line of the 242 Aviation Engines cylinder is a little to one side of the center of the crank-shaft. Diagrams are presented… … Fig. 90.—Cross Section of Austro-Daimler Engine, Showing Offset CylinderConstruction. Note Applied Water Jacket and Peculiar Valve Action. view at A is a section through a simple motor with theconventional cylinder placing, the center line of bothcrank-shaft and cylinder coinciding. The view at B…
Airplanes
