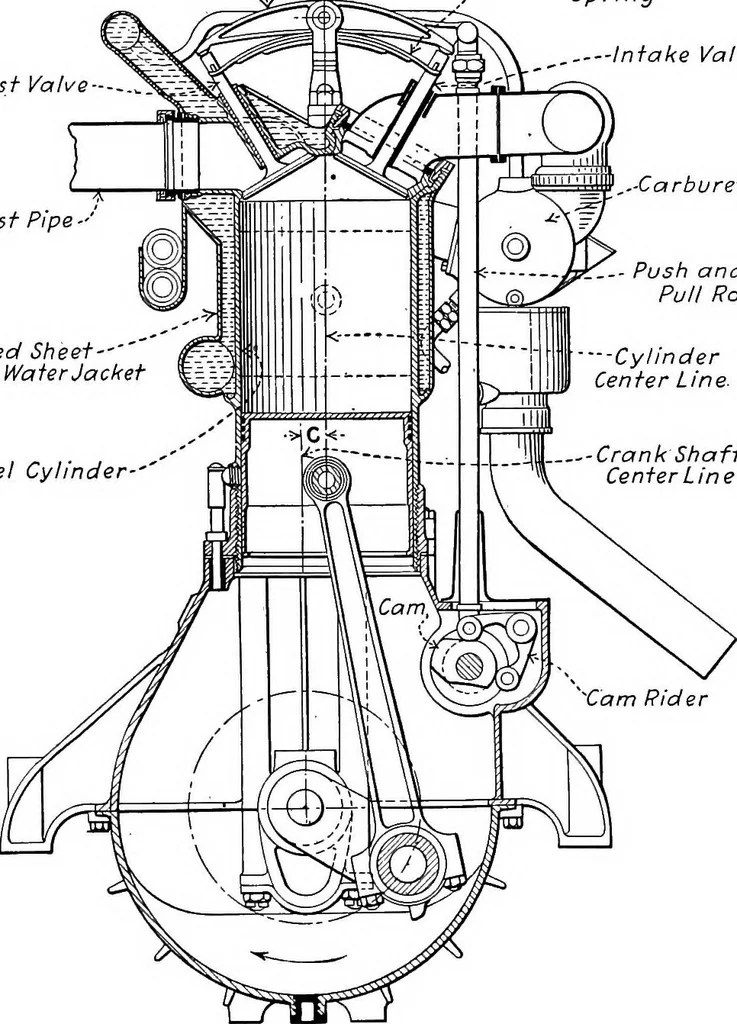

the crank-shaft, or to one side of center. The motor shown atFig. 90 is an off-set type, in that the center line of the 242 Aviation Engines cylinder is a little to one side of the center of the crank-shaft. Diagrams are presented at Fig. 91 which showthe advantages of off-set crank-shaft… … Fig, 90.—Cross Section of Austro-Daimler Engine, Showing Offset CylinderConstruction. Note Applied Water Jacket and Peculiar Valve Action. view at A is a section through a simple motor with theconventional cylinder placing, the center line of bothcrank-shaft and cylinder coinciding. The view at B…
