Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 423

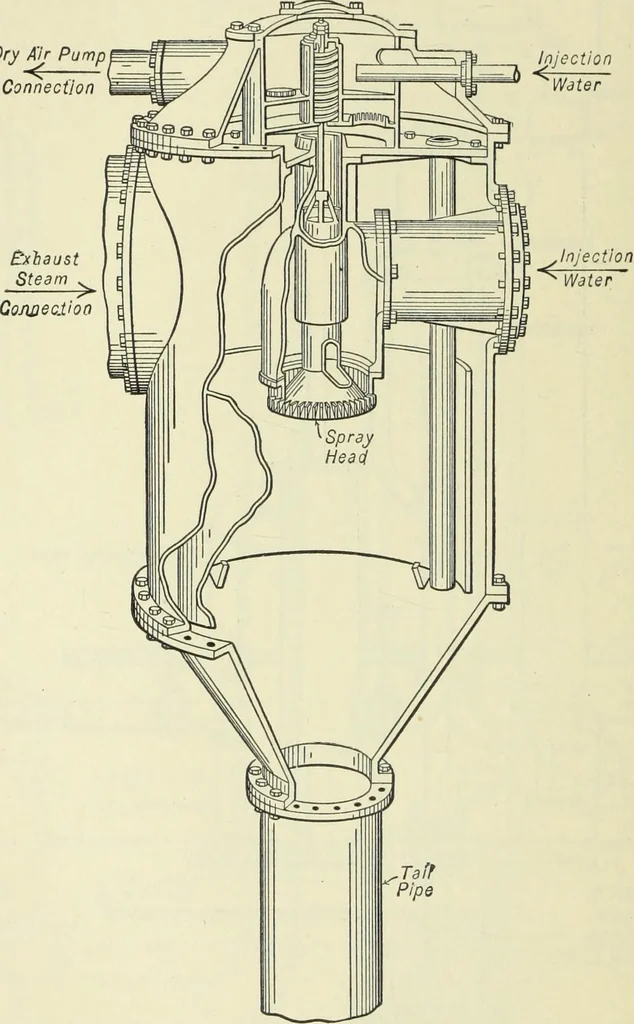

(at sea level) is 14.7 — 1 or 13.7 lb. per sq. in. Assuming atemperature of water in the tail pipe of 110° F. the density is 61.89 lb. per cu. ft. Under theseconditions the water will stand 13.7 X 144/61.89 or 31.8 ft. above the level of the hot well. Figs. 17 and 18 shows an installation of the… … Fig. 20. Alberger Barometric Condenser. water in order to insure the entrainment of the air as fast as it accumulates in the condenserhead. On account of the vacuum maintained in the condenser the actual head, including frictionagainst which the circulating water pump operates, is approximately 15…
Building · Heating · Ventilation
