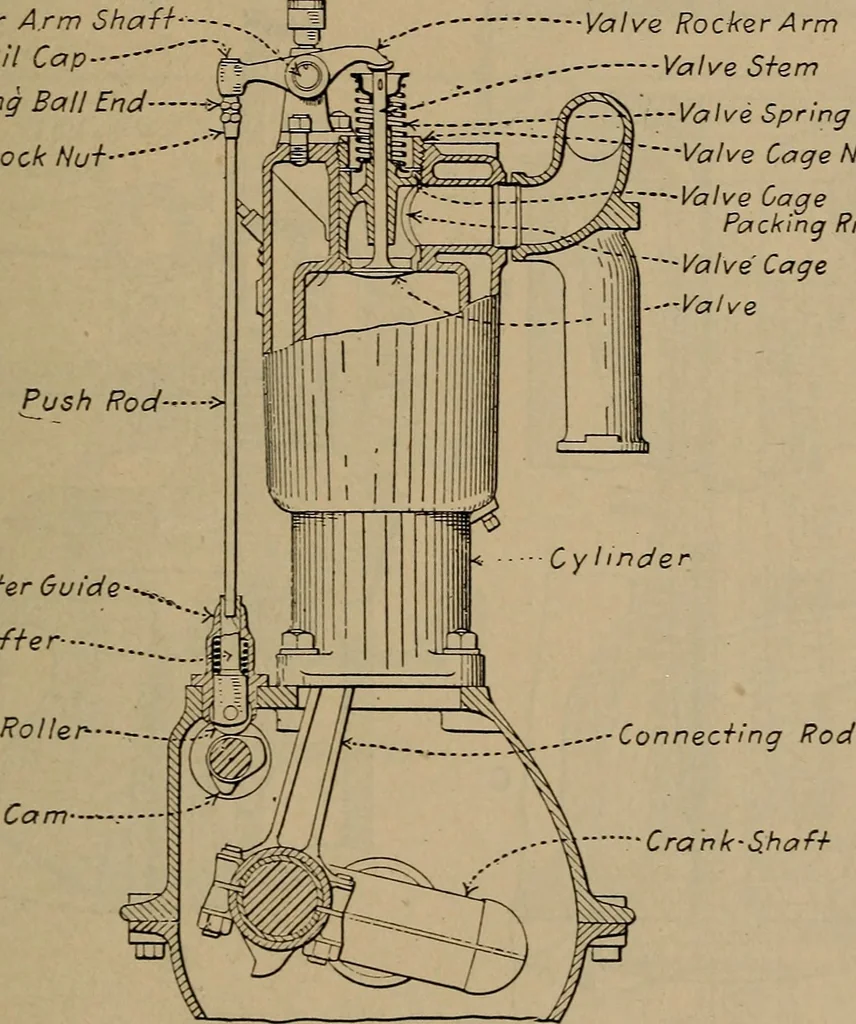

is construction iswell shown at Fig. 92, D and is found on Anzani motors.The method of valve application shown at Fig. 87 isan ingenious method of overcoming some of the disad-vantages inherent with valve-in-the-head motors. In thefirst place it is possible to water-jacket the valves thor- Rpcker… … Fig. 93.—Sectional View of Engine Cylinder Showing Valve and Cage Installation. oughly, which is difficult to accomplish when they aremounted in cages. The water circulates directly aroundthe walls of the valve chambers, which is superior to aconstruction where separate cages are used, as there…
