Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 250

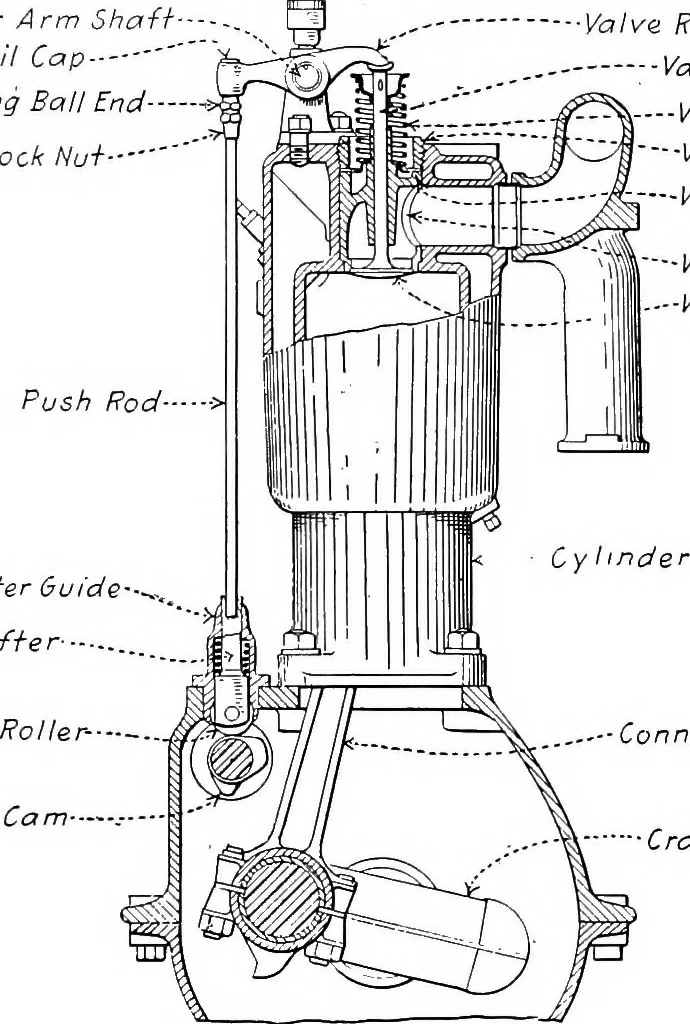

e L form cylinder is sometimesmade more efficient if but one valve is placed in the pocket Valve Location Practice 249 while the other is placed over it. This construction iswell shown at Fig. 92, D and is found on Anzani motors.The method of valve application shown at Fig. 87 isan ingenious method… … Valve Rocker Arm Valve Stem -Valve Spring Valve Cage Nut Valve Cage Packing Ring Valve Cage —Valve Valve Lifter Guide--Valve Lifter -Connecting Rod ■Crank-Shaft Fig. 93.—Sectional View of Engine Cylinder Showing Valve and Cage Installation. oughly, which is difficult to accomplish when they…
Airplanes
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
